DIODESDatasheet (PDF)

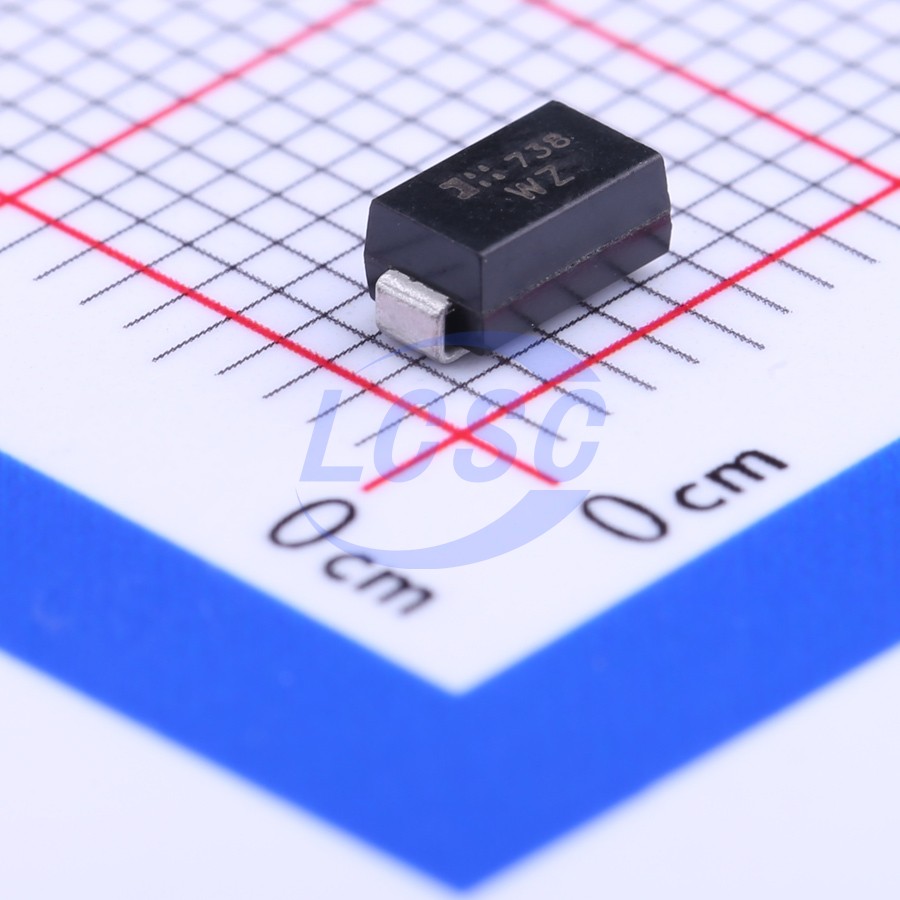

SMAJ100CA-13-F
324VC Clamp 1.2A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 100VWM 324VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ100CA-13-F
- Store part #
- C134938
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C134938
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.45 | ₹122.25 |
| 50+ | ₹19.49 | ₹974.50 |
| 150+ | ₹17.36 | ₹2,604.00 |
| 500+ | ₹14.70 | ₹7,350.00 |
| 2,500+ | ₹13.52 | ₹33,800.00 |
| 5,000+ | ₹12.81 | ₹64,050.00 |
5 × ₹24.45
₹122.25
excl. GST
₹144.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ100CA-13-F
₹122.25 for 5 + GST
Specifications
- Clamping Voltage
- 324V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 123V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 100V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ100CA#C3720611Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 220 | ₹23.39 · 220 in stock | View |
 | SMAJ100CA#C173494MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 3,651 | ₹5.28 · 3,651 in stock | View |
 | SMAJ100CA#C2980418GOODWORK · DO-214AC(SMA) | GOODWORK | DO-214AC(SMA) | 3,700 | ₹4.27 · 3,700 in stock | View |
 | SMAJ100CA#C5353148FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,500 | ₹4.19 · 4,500 in stock | View |
 | SMAJ100CA#C726810TWGMC · DO-214AC(SMA) | TWGMC | DO-214AC(SMA) | 940 | ₹4.84 · 940 in stock | View |
