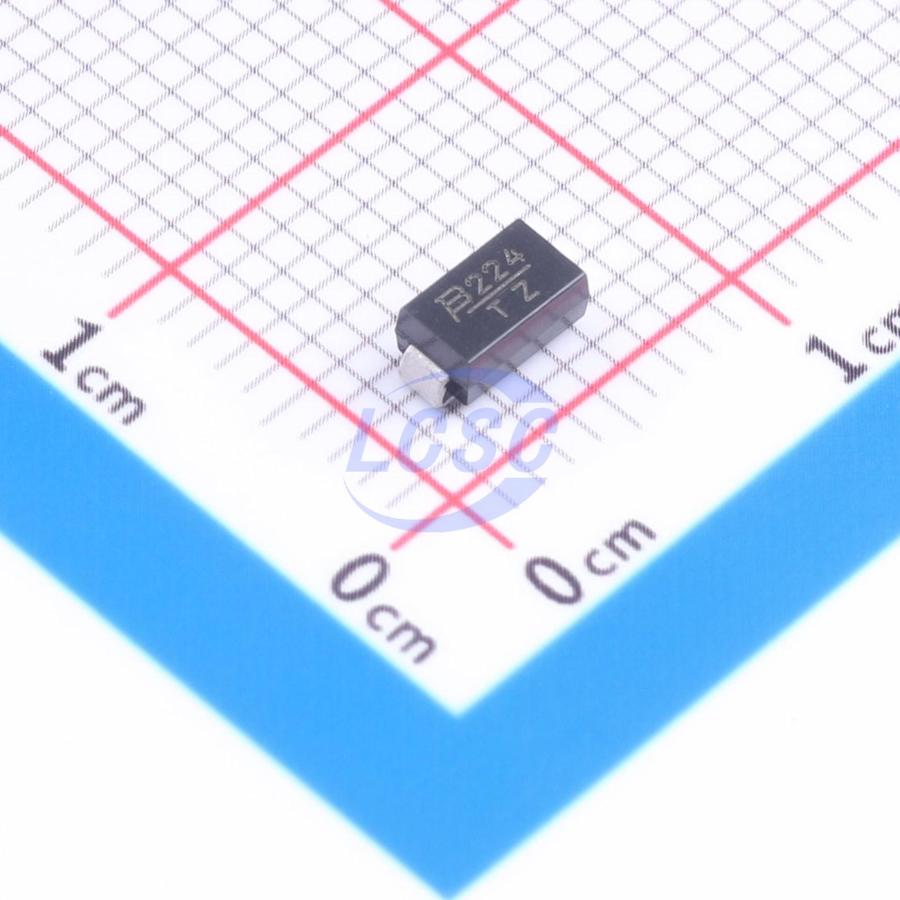

SMAJ11CA
23.7V 110A@8/20us 400W@1ms 13.5V Bidirectional 11V SMA(DO-214AC) TVS Diodes RoHS
- Manufacturer
- BOURNS
- Manufacturer part #
- SMAJ11CA
- Store part #
- C7437266
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C7437266
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.22 | ₹161.10 |
| 50+ | ₹31.75 | ₹1,587.50 |
| 150+ | ₹31.43 | ₹4,714.50 |
| 500+ | ₹31.12 | ₹15,560.00 |
5 × ₹32.22
₹161.10
excl. GST
₹190.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ11CA
₹161.10 for 5 + GST
Specifications
- Clamping Voltage
- 23.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 110A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@1ms
- Number of Channels
- 1
- Voltage - Breakdown
- 13.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Transient Voltage Suppressor Diodes are offered for surge and ESD protection applications, in compact chip package DO - 214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 495 V and Breakdown Voltage up to 550 V. Typical fast response times are less than 1.0 picoseconds for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 V to Minimum Breakdown Voltage. Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- IEC 61000 - 4 - 2 ESD (Min. Level 4)
- IEC 61000 - 4 - 4 EFT
- IEC 61000 - 4 - 5 Surge
Key features
- RoHS compliant
- Surface Mount SMA package
- Standoff Voltage: 5.0 to 495 volts
- Power Dissipation: 400 watts
- UL Recognized
