SMAJ12AHE3_A/H

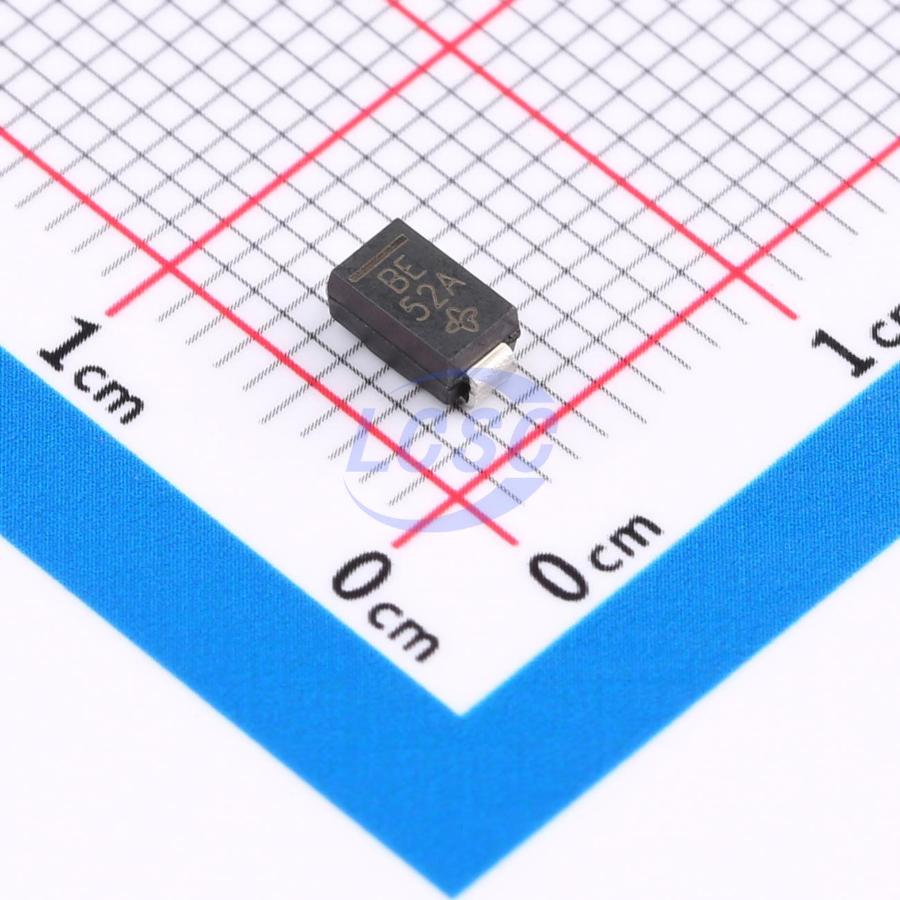

19.9VC Clamp 18.6A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS CompliantActive
TVS DIODE 13VWM 19.9VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ12AHE3_A/H
- Store part #
- C1666019
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C1666019
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.91 | ₹99.55 |
| 50+ | ₹16.01 | ₹800.50 |
| 150+ | ₹14.05 | ₹2,107.50 |
| 500+ | ₹12.58 | ₹6,290.00 |
| 1,800+ | ₹11.42 | ₹20,556.00 |
| 5,400+ | ₹10.82 | ₹58,428.00 |
5 × ₹19.91
₹99.55
excl. GST
₹117.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ12AHE3_A/H
₹99.55 for 5 + GST
Specifications
- Clamping Voltage
- 19.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 18.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 15.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.117 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?299912
