DIODESDatasheet (PDF)

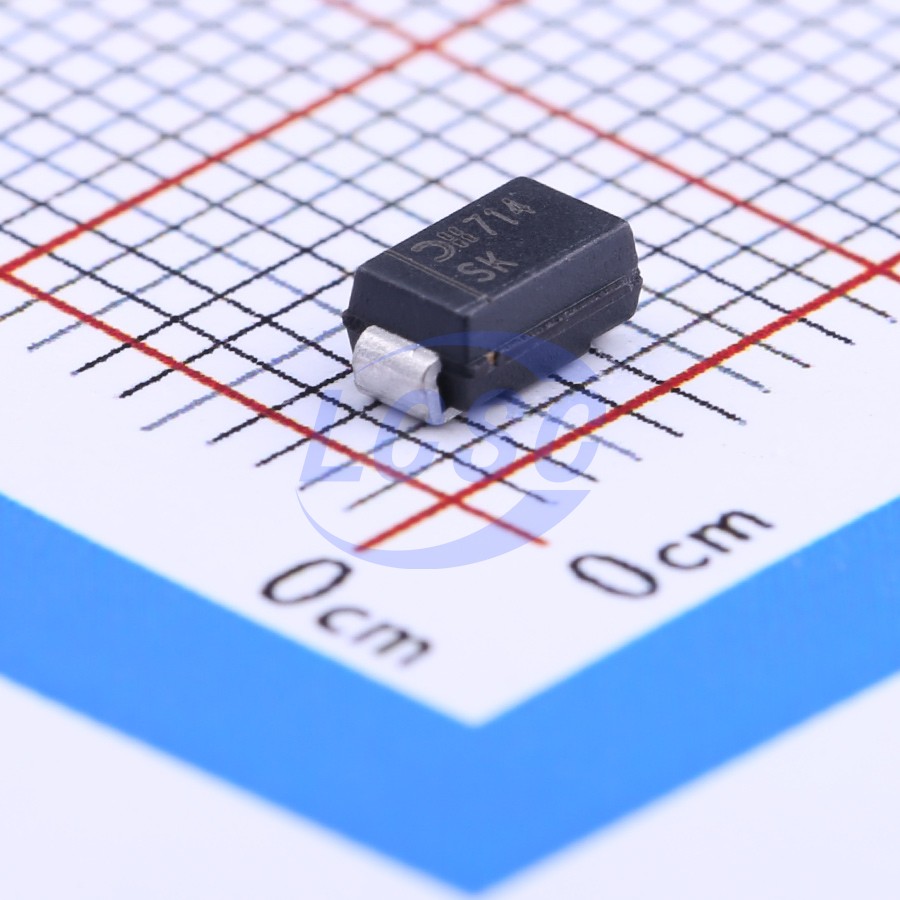

SMAJ130A-13-F
324VC Clamp 1.2A Ipp TVS DIODE SMA
SMAROHS CompliantActive
TVS DIODE 130VWM 324VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ130A-13-F
- Store part #
- C134949
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
575 in stock
#C134949
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.52 | ₹77.60 |
| 50+ | ₹15.19 | ₹759.50 |
| 150+ | ₹14.96 | ₹2,244.00 |
| 500+ | ₹14.74 | ₹7,370.00 |
5 × ₹15.52
₹77.60
excl. GST
₹91.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ130A-13-F
₹77.60 for 5 + GST
Specifications
- Clamping Voltage
- 324V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 159V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 130V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
