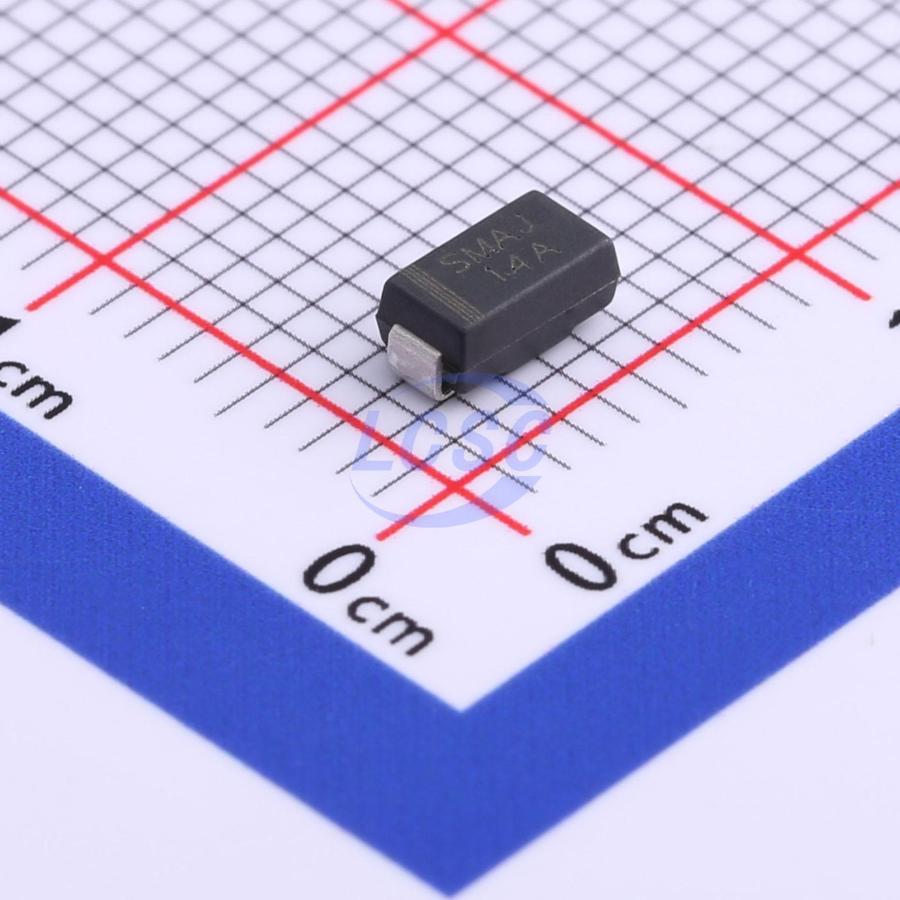

SMAJ14A
23.2VC Clamp 17.24A Ipp TVS DIODE DO-214AC(SMA)
DO-214AC(SMA)ROHS CompliantActive
TVS DIODE 14VWM 23.2VC DO-214AC(SMA)
- Manufacturer
- YANGJIE
- Manufacturer part #
- SMAJ14A
- Store part #
- C698955
- Package / case
- DO-214AC(SMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
380 in stock
#C698955
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.92 | ₹492.00 |
| 300+ | ₹4.30 | ₹1,290.00 |
| 1,000+ | ₹3.82 | ₹3,820.00 |
| 5,000+ | ₹3.35 | ₹16,750.00 |
| 10,000+ | ₹3.16 | ₹31,600.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ14A
₹61.80 for 10 + GST
Specifications
- Clamping Voltage
- 23.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17.24A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 15.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.122 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication.
Key features
- For surface mounted applications
- Low-profile package
- Ideal for automated placement
- Available in Unidirectional and Bidirectional
- 400 W peak pulse power capability with a 10/1000 μs waveform
- Low incremental surge resistance, excellent clamping capability
- Very fast response time
- High temperature soldering guaranteed: 260 °C/10 s at terminals
- Meets MSL level 1
- Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
