JSCJDatasheet (PDF)

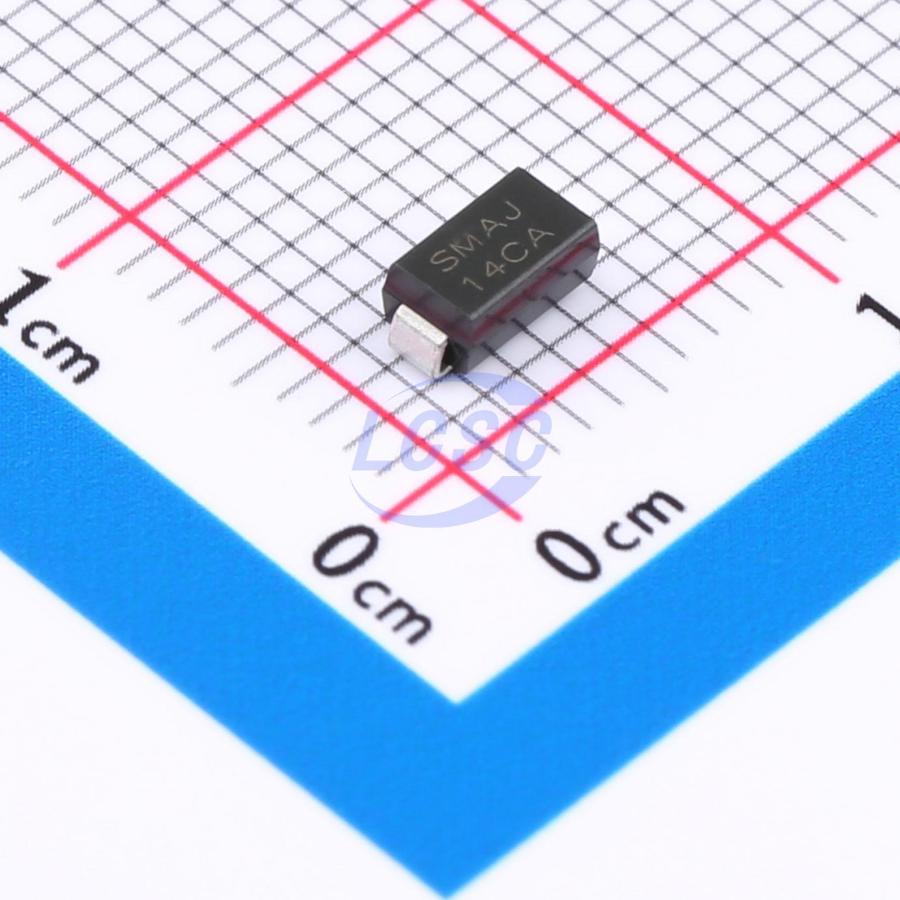

SMAJ14CA
23.2VC Clamp 17.2A Ipp TVS DIODE SMAG
SMAGROHS CompliantActive
TVS DIODE 14VWM 23.2VC SMAG
- Manufacturer
- JSCJ
- Manufacturer part #
- SMAJ14CA
- Store part #
- C5294349
- Package / case
- SMAG
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C5294349
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.07 | ₹80.70 |
| 100+ | ₹6.46 | ₹646.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 1,000+ | ₹5.04 | ₹5,040.00 |
| 5,000+ | ₹4.56 | ₹22,800.00 |
| 10,000+ | ₹4.31 | ₹43,100.00 |
10 × ₹8.07
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ14CA
₹80.70 for 10 + GST
Specifications
- Clamping Voltage
- 23.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 15.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.08 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMAJ14CA#C7499096JSCJ · SMAG | JSCJ | SMAG | 10 | ₹6.42 · 10 in stock | View |
 | SMAJ15CA#C1509527JSCJ · SMAG | JSCJ | SMAG | 27,390 | ₹11.64 · 27,390 in stock | View |
 | CJSMAJ13CA#C7499095JSCJ · SMAG | JSCJ | SMAG | 4,030 | ₹6.30 · 4,030 in stock | View |
 | SMAJ13CA#C5294351JSCJ · SMAG | JSCJ | SMAG | 8,370 | ₹7.98 · 8,370 in stock | View |
 | CJSMAJ15CA#C7499097JSCJ · SMAG | JSCJ | SMAG | 4,050 | ₹7.17 · 4,050 in stock | View |
