DIODESDatasheet (PDF)

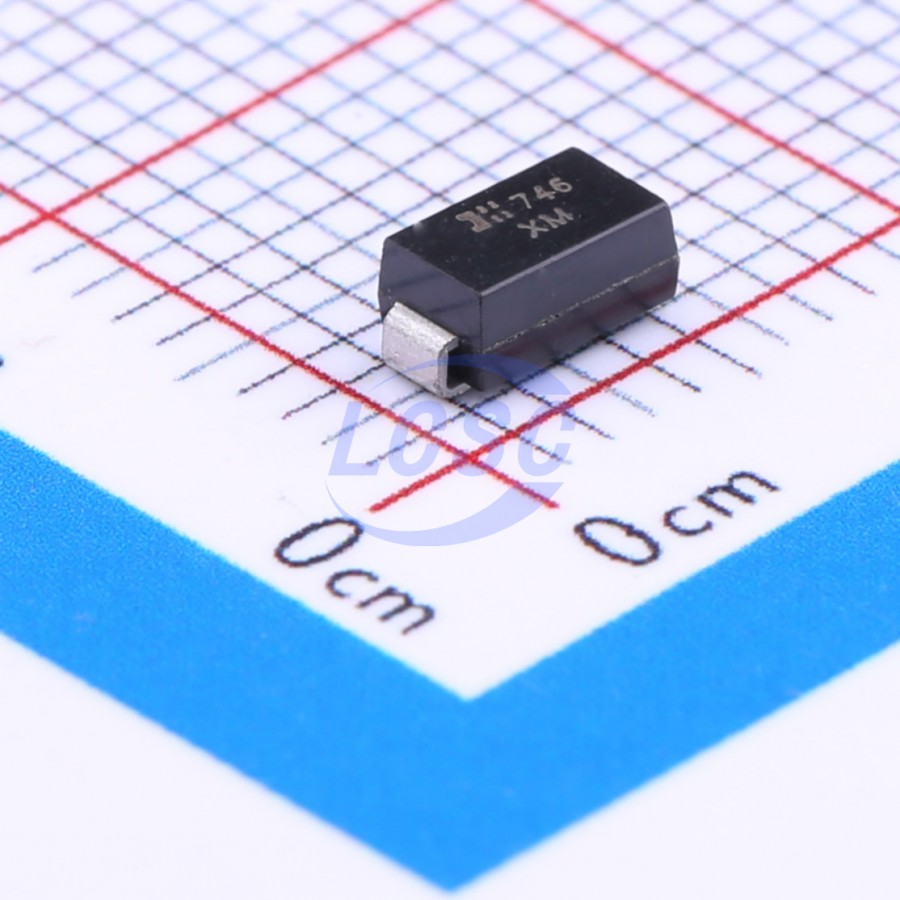

SMAJ150CA-13-F
24.4VC Clamp 16.4A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 150VWM 24.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ150CA-13-F
- Store part #
- C134955
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C134955
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.87 | ₹119.35 |
| 50+ | ₹23.54 | ₹1,177.00 |
| 150+ | ₹23.32 | ₹3,498.00 |
| 500+ | ₹23.10 | ₹11,550.00 |
5 × ₹23.87
₹119.35
excl. GST
₹140.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ150CA-13-F
₹119.35 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 16.4A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 185V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 150V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ150CA#C1972943Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 2 | ₹65.22 · 2 in stock | View |
 | SMAJ150CA#C364291MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 5,320 | ₹6.20 · 5,320 in stock | View |
 | SMAJ150CA#C3719679BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | On request | ₹20.04 · 0 in stock | View |
| SMAJ150CA#C3720441Taiwan Semiconductor · DO-214AC(SMA) | Taiwan Semiconductor | DO-214AC(SMA) | On request | ₹16.23 · 0 in stock | View | |
| SMAJ150CA#C3720864SMC · SMA(DO-214AC) | SMC | SMA(DO-214AC) | On request | ₹8.40 · 0 in stock | View | |
