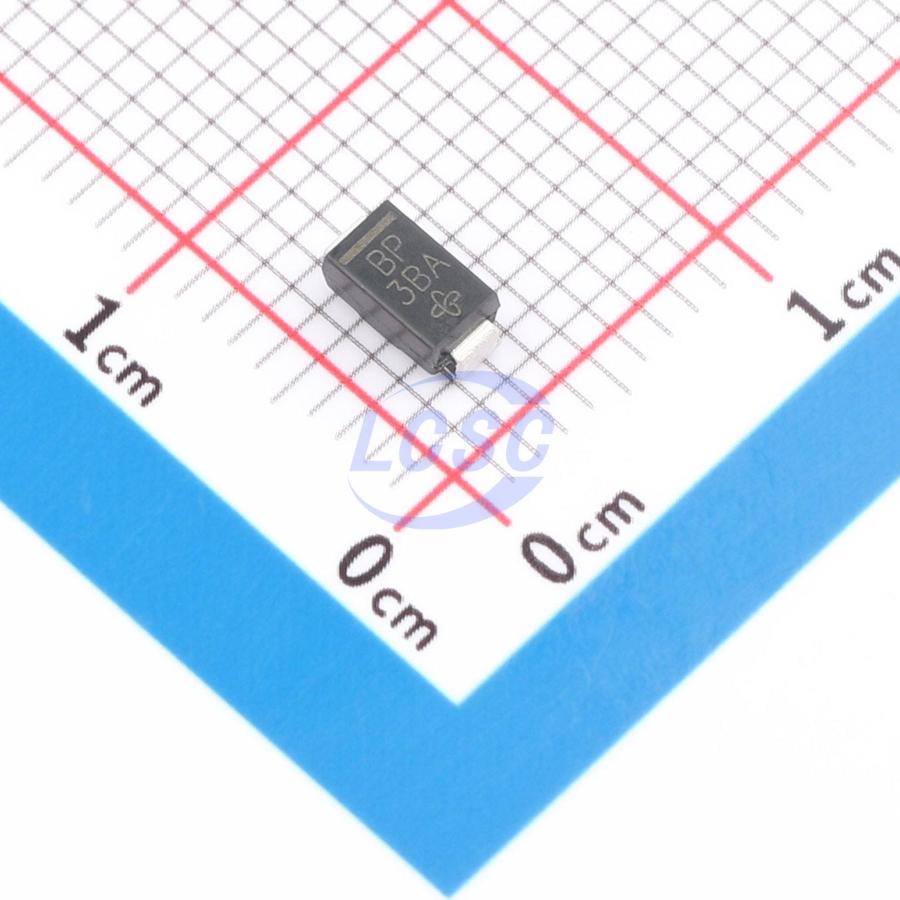

SMAJ16AHE3_A/H
26VC Clamp 15.4A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ16AHE3_A/H
- Store part #
- C1978393
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C1978393
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.98 | ₹129.90 |
| 50+ | ₹22.37 | ₹1,118.50 |
| 150+ | ₹20.56 | ₹3,084.00 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 1,800+ | ₹18.13 | ₹32,634.00 |
| 5,400+ | ₹17.58 | ₹94,932.00 |
5 × ₹25.98
₹129.90
excl. GST
₹153.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAJ16AHE3_A/H
₹129.90 for 5 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 15.4A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 17.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?299912
