DIODESDatasheet (PDF)

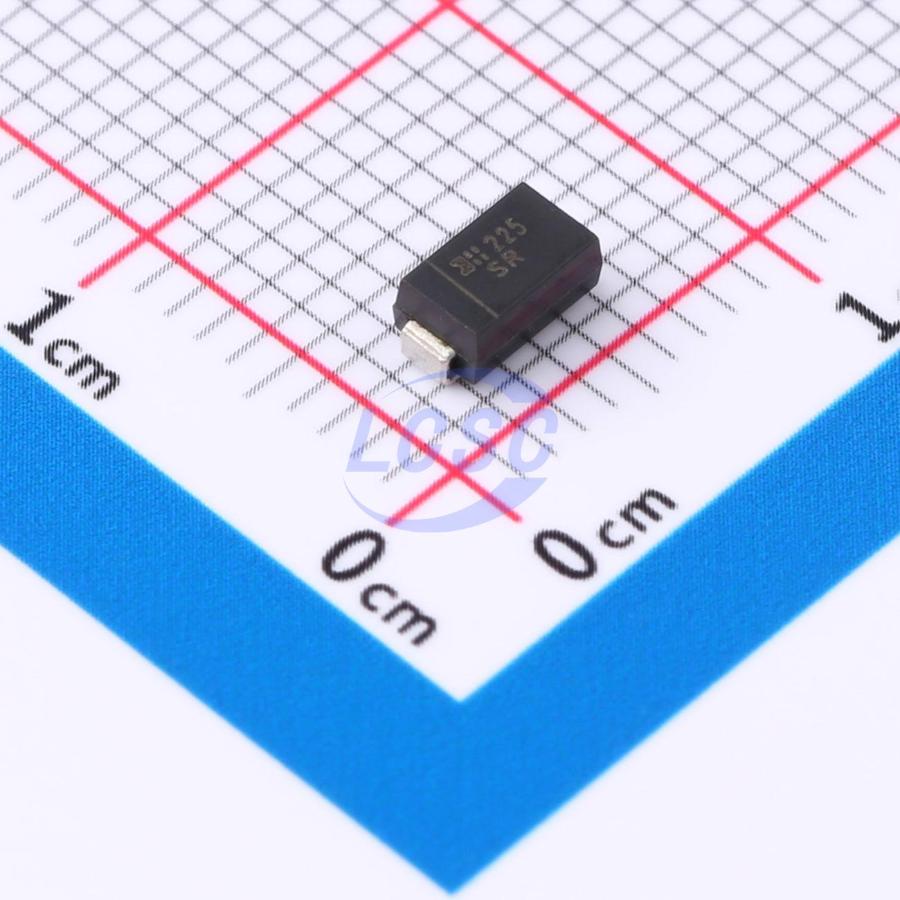

SMAJ170AQ-13-F
275VC Clamp 1.4A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 170VWM 275VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ170AQ-13-F
- Store part #
- C1978473
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C1978473
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.12 | ₹85.60 |
| 50+ | ₹16.76 | ₹838.00 |
| 150+ | ₹16.51 | ₹2,476.50 |
| 500+ | ₹16.27 | ₹8,135.00 |
5 × ₹17.12
₹85.60
excl. GST
₹101.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ170AQ-13-F
₹85.60 for 5 + GST
Specifications
- Clamping Voltage
- 275V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 209V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 170V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.076 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ170A#C5174734JSCJ · SMAG | JSCJ | SMAG | 2,055 | ₹13.92 · 2,055 in stock | View |
 | SMAJ170A#C49066929R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 4,920 | ₹5.45 · 4,920 in stock | View |
 | SMAJ170A#C10765RUILON · DO-214AC(SMA) | RUILON | DO-214AC(SMA) | 2,770 | ₹9.96 · 2,770 in stock | View |
 | P4SMAJ170A_R1_00001#C268633PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 1,005 | ₹9.54 · 1,005 in stock | View |
 | SMAJ170A#C2926435KUU · SMA | KUU | SMA | 60 | ₹4.25 · 60 in stock | View |
