DIODESDatasheet (PDF)

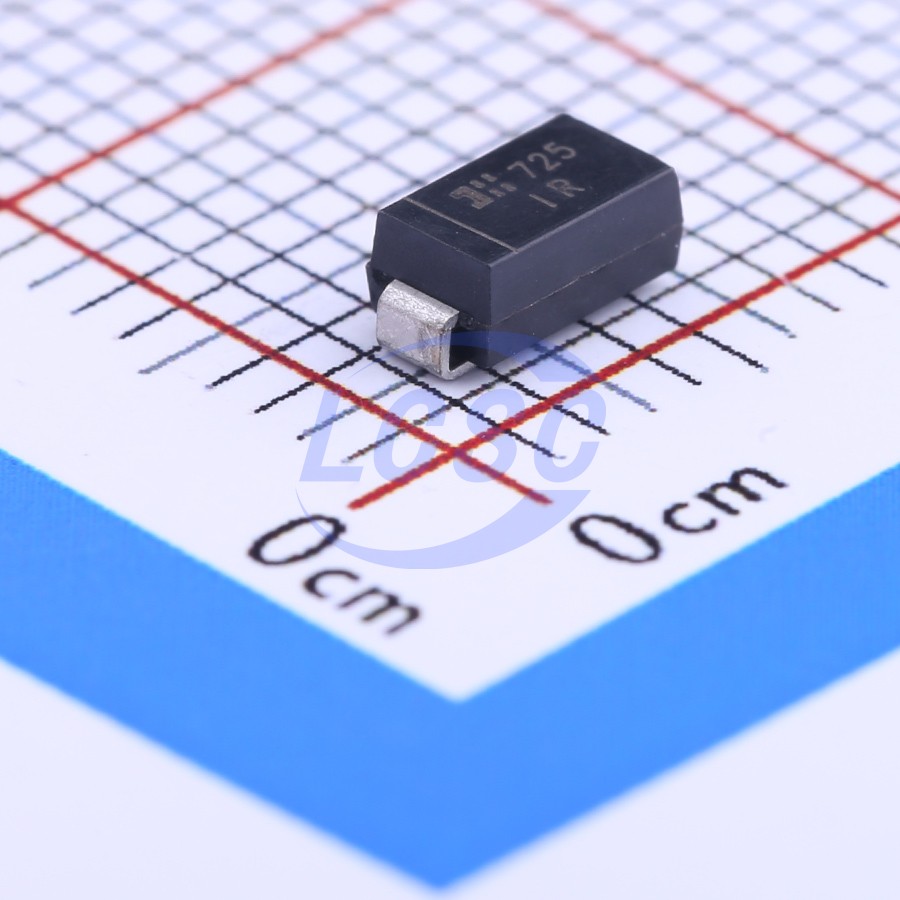

SMAJ17A-13-F
27.6VC Clamp 14.5A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 17VWM 27.6VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ17A-13-F
- Store part #
- C134963
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C134963
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.11 | ₹115.55 |
| 50+ | ₹18.35 | ₹917.50 |
| 150+ | ₹16.31 | ₹2,446.50 |
| 500+ | ₹13.76 | ₹6,880.00 |
| 2,500+ | ₹12.63 | ₹31,575.00 |
| 5,000+ | ₹11.95 | ₹59,750.00 |
5 × ₹23.11
₹115.55
excl. GST
₹136.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ17A-13-F
₹115.55 for 5 + GST
Specifications
- Clamping Voltage
- 27.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 20.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
