DIODESDatasheet (PDF)

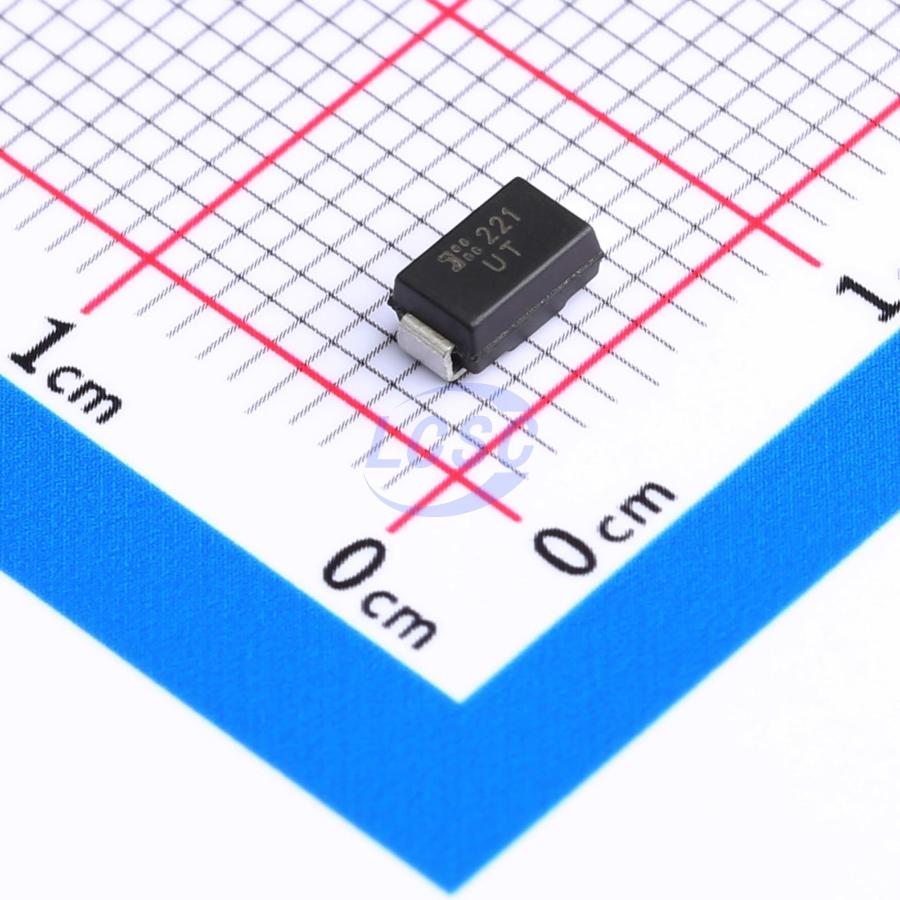

SMAJ18CAQ-13-F
29.2VC Clamp 13.7A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 18VWM 29.2VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ18CAQ-13-F
- Store part #
- C2960367
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C2960367
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.34 | ₹121.70 |
| 50+ | ₹20.33 | ₹1,016.50 |
| 150+ | ₹18.34 | ₹2,751.00 |
| 500+ | ₹16.83 | ₹8,415.00 |
| 2,500+ | ₹15.64 | ₹39,100.00 |
| 5,000+ | ₹15.03 | ₹75,150.00 |
5 × ₹24.34
₹121.70
excl. GST
₹143.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ18CAQ-13-F
₹121.70 for 5 + GST
Specifications
- Clamping Voltage
- 29.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 13.7A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 20V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ18CA#C2760876Slkor · SMA(DO-214AC) | Slkor | SMA(DO-214AC) | 30 | ₹6.39 · 30 in stock | View |
 | SMAJ18CA#C2991101SUNMATE Elec · SMA(DO-214AC) | SUNMATE Elec | SMA(DO-214AC) | 1,770 | ₹8.20 · 1,770 in stock | View |
 | SMAJ18CA#C435546AnBon · SMA(DO-214AC) | AnBon | SMA(DO-214AC) | 80 | ₹7.21 · 80 in stock | View |
 | SMAJ18CA#C514088High Diode · SMA | High Diode | SMA | 3,740 | ₹8.22 · 3,740 in stock | View |
 | SMAJ18CA#C698964YANGJIE · DO-214AC(SMA) | YANGJIE | DO-214AC(SMA) | 1,910 | ₹6.95 · 1,910 in stock | View |
