TECH PUBLICDatasheet (PDF)

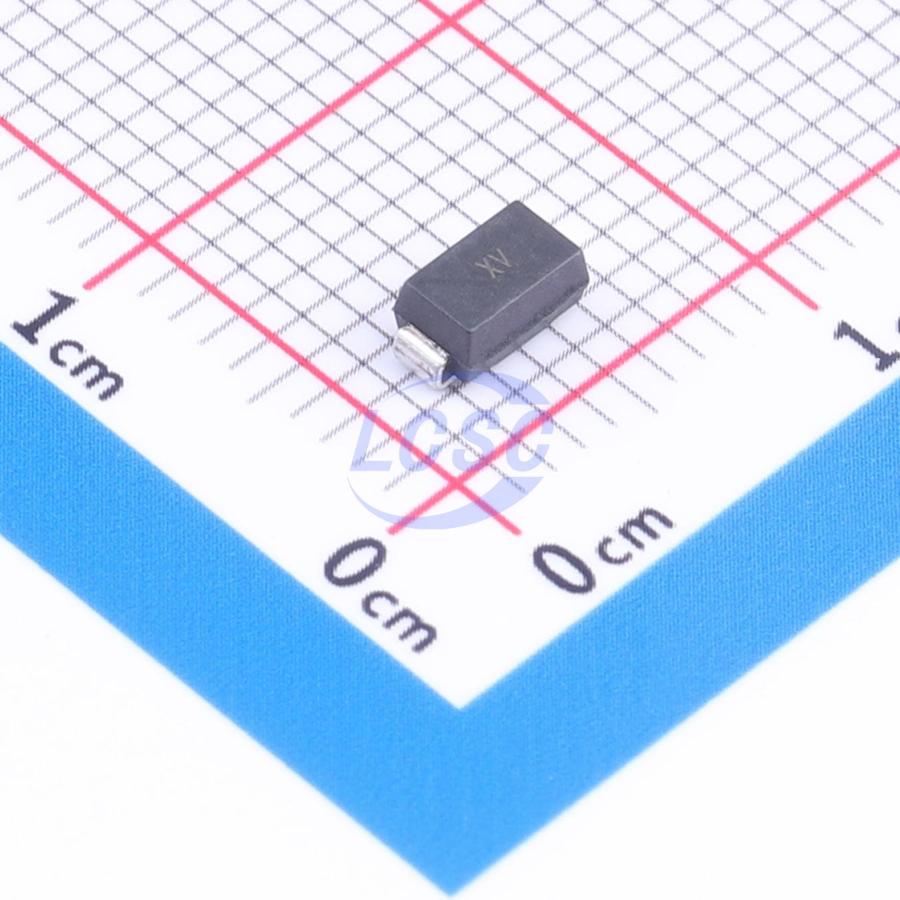

SMAJ20CA
32.4V 12.3A 400W@10/1000us 24.5V Bidirectional 20V SMA TVS Diodes
SMARoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMAJ20CA
- Store part #
- C53477728
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,750 in stock
#C53477728
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.48 | ₹54.80 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 1,000+ | ₹3.31 | ₹3,310.00 |
| 5,000+ | ₹2.96 | ₹14,800.00 |
| 10,000+ | ₹2.79 | ₹27,900.00 |
10 × ₹5.48
₹54.80
excl. GST
₹64.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ20CA
₹54.80 for 10 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 12.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 24.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.116 g
Overview
Applications
- Personal Digital Assistants (PDAs)
- Mobile phones and accessories
- Handheld devices and notebook computers
- Portable instruments
Key features
- Peak power dissipation 400W at pulse width 10 x 1000μs
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen-free and RoHS compliant
