DIODESDatasheet (PDF)

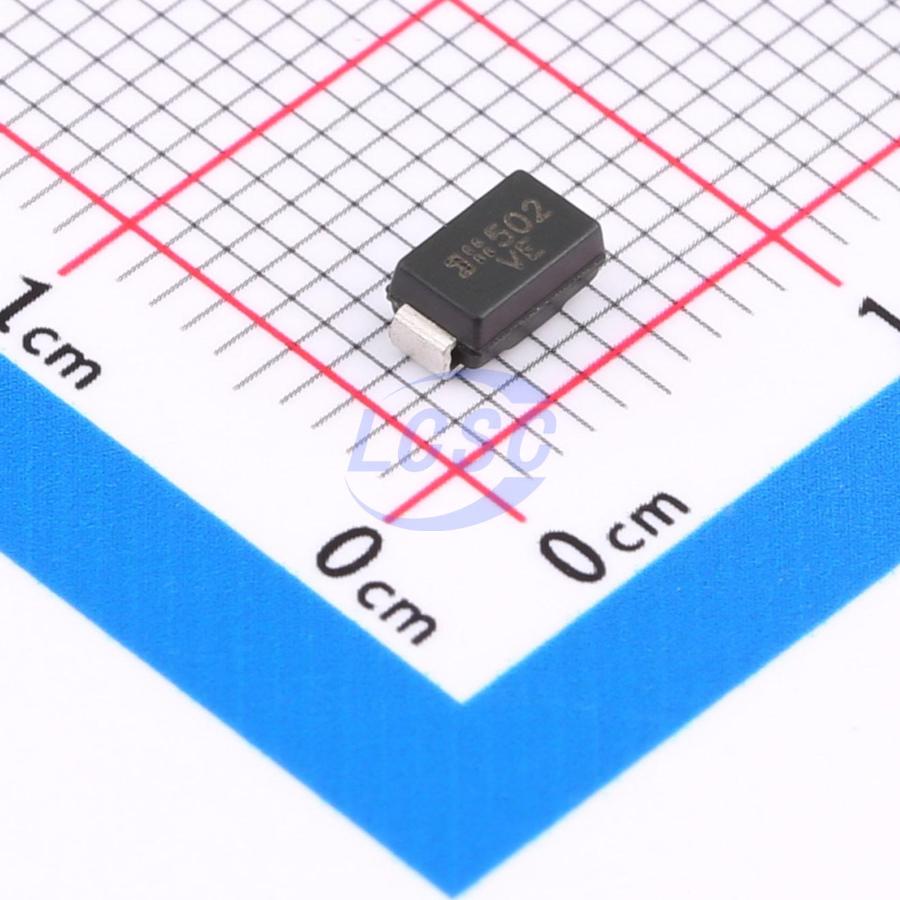

SMAJ26CA-13-F
42.1VC Clamp 9.5A Ipp TVS DIODE SMA
SMAROHS CompliantActive
TVS DIODE 26VWM 42.1VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ26CA-13-F
- Store part #
- C134976
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C134976
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.30 | ₹131.50 |
| 50+ | ₹21.75 | ₹1,087.50 |
| 150+ | ₹19.81 | ₹2,971.50 |
| 500+ | ₹17.37 | ₹8,685.00 |
| 2,500+ | ₹16.29 | ₹40,725.00 |
| 5,000+ | ₹15.62 | ₹78,100.00 |
5 × ₹26.30
₹131.50
excl. GST
₹155.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ26CA-13-F
₹131.50 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ26CAQ-13-F#C1975083DIODES · SMA | DIODES | SMA | 4,805 | ₹26.17 · 4,805 in stock | View |
 | SMAJ26CA#C20419868FUXINSEMI · DO-214AC(SMA) | FUXINSEMI | DO-214AC(SMA) | 360 | ₹4.30 · 360 in stock | View |
 | SMAJ26CA#C5353131FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 7,380 | ₹4.33 · 7,380 in stock | View |
 | SMAJ26CAX#C5307973JingYang · SMA | JingYang | SMA | 4,460 | ₹6.39 · 4,460 in stock | View |
 | CJSMAJ26CA#C7499104JSCJ · SMAG | JSCJ | SMAG | 5,000 | ₹9.86 · 5,000 in stock | View |
