DIODESDatasheet (PDF)

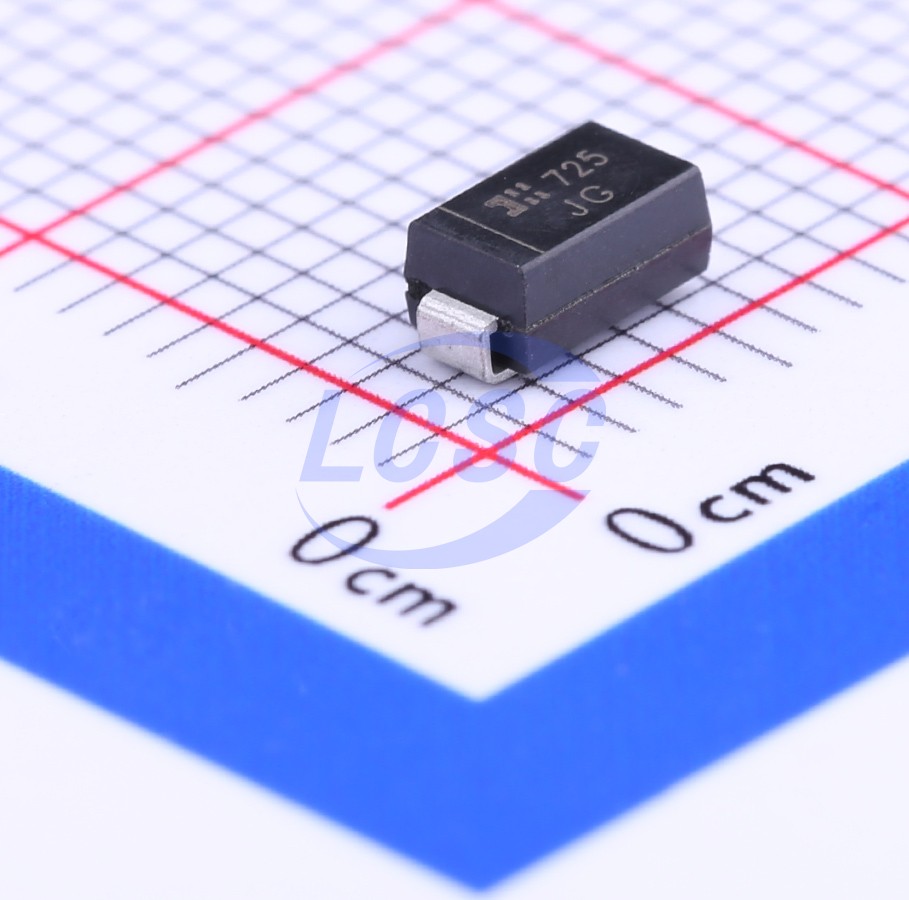

SMAJ28A-13-F
45.4VC Clamp 8.8A@8.3ms Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ28A-13-F
- Store part #
- C134977
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
630 in stock
#C134977
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.62 | ₹113.10 |
| 50+ | ₹17.34 | ₹867.00 |
| 150+ | ₹14.70 | ₹2,205.00 |
| 500+ | ₹12.73 | ₹6,365.00 |
| 2,500+ | ₹11.14 | ₹27,850.00 |
| 5,000+ | ₹10.35 | ₹51,750.00 |
5 × ₹22.62
₹113.10
excl. GST
₹133.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ28A-13-F
₹113.10 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMAJ28A#C41425678TECH PUBLIC · DO-214AC(SMA) | TECH PUBLIC | DO-214AC(SMA) | 4,990 | ₹7.58 · 4,990 in stock | View |
 | SMAJ28A#C5189773MSKSEMI · SMA | MSKSEMI | SMA | 460 | ₹3.93 · 460 in stock | View |
 | SMAJ28A#C5353173FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 9,260 | ₹4.35 · 9,260 in stock | View |
 | SMAJ28A#C726752TWGMC · DO-214AC(SMA) | TWGMC | DO-214AC(SMA) | 4,440 | ₹5.23 · 4,440 in stock | View |
