DIODESDatasheet (PDF)

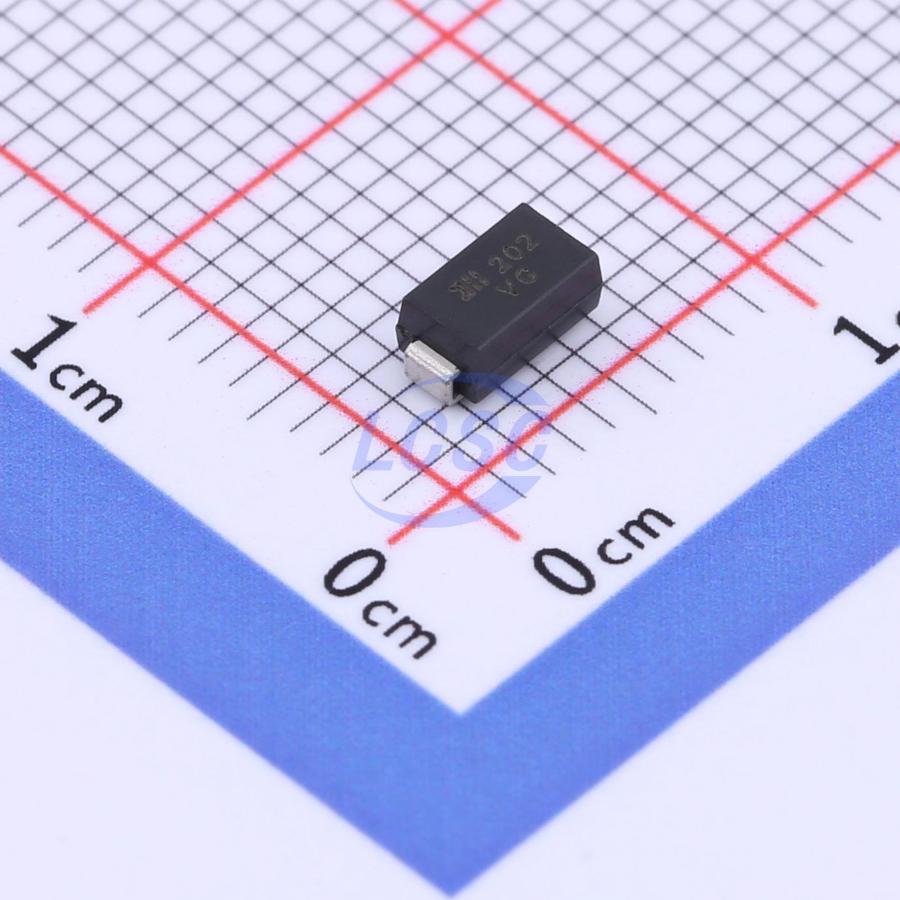

SMAJ28CAQ-13-F
45.4VC Clamp 8.8A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ28CAQ-13-F
- Store part #
- C1974191
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
320 in stock
#C1974191
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.33 | ₹201.65 |
| 50+ | ₹32.02 | ₹1,601.00 |
| 150+ | ₹28.44 | ₹4,266.00 |
| 500+ | ₹24.01 | ₹12,005.00 |
| 2,500+ | ₹22.03 | ₹55,075.00 |
| 5,000+ | ₹20.84 | ₹1,04,200.00 |
5 × ₹40.33
₹201.65
excl. GST
₹237.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ28CAQ-13-F
₹201.65 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8.8A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.108 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ28CA-13-F#C134978DIODES · SMA | DIODES | SMA | 8,175 | ₹31.75 · 8,175 in stock | View |
 | SM4T33CA-MS#C45367225MSKSEMI · SMA(DO-214AC) | MSKSEMI | SMA(DO-214AC) | 500 | ₹10.17 · 500 in stock | View |
 | CJSMAJ28CA#C7499105JSCJ · SMAG | JSCJ | SMAG | 720 | ₹8.12 · 720 in stock | View |
 | SMAJ28CA#C152118BORN · SMA(DO-214AC) | BORN | SMA(DO-214AC) | 1,200 | ₹7.83 · 1,200 in stock | View |
 | SMAJ28CA#C1692715TKS · DO-214AC | TKS | DO-214AC | 25 | ₹10.50 · 25 in stock | View |
