HXY MOSFETDatasheet (PDF)

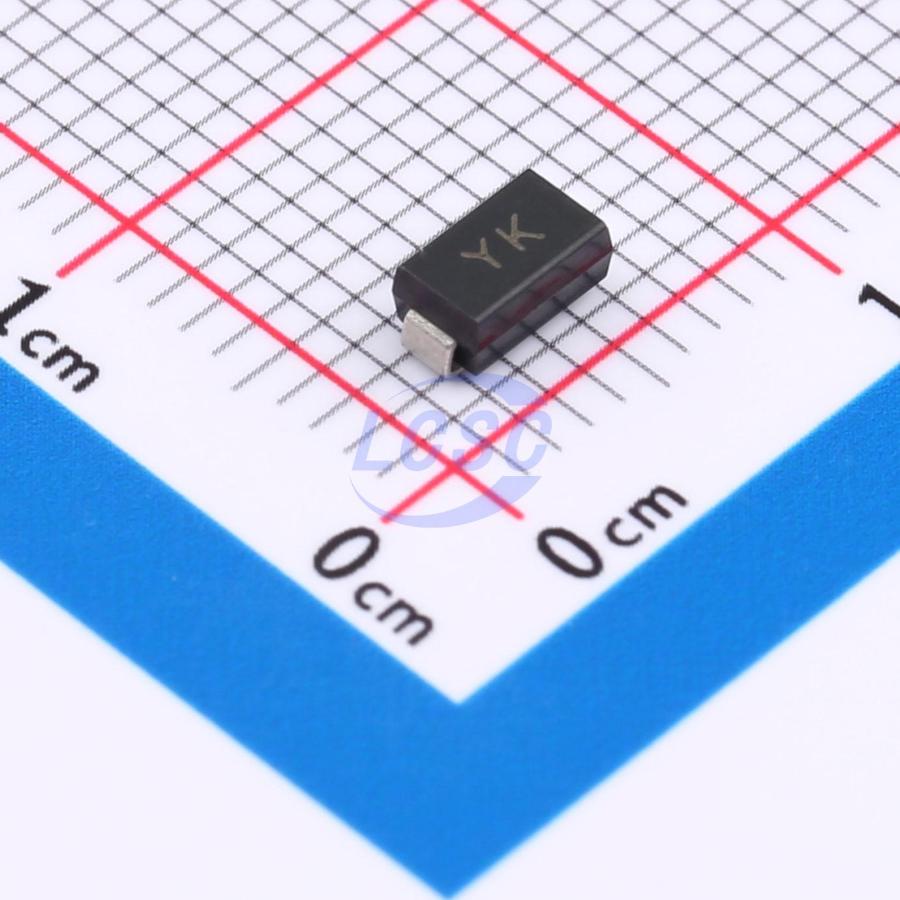

SMAJ30CA
48.4VC Clamp 8.3A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS CompliantActive
TVS DIODE 30VWM 48.4VC SMA(DO-214AC)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SMAJ30CA
- Store part #
- C7466475
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7466475
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.81 | ₹38.10 |
| 100+ | ₹2.99 | ₹299.00 |
| 300+ | ₹2.54 | ₹762.00 |
| 1,000+ | ₹2.26 | ₹2,260.00 |
| 5,000+ | ₹2.02 | ₹10,100.00 |
| 10,000+ | ₹1.89 | ₹18,900.00 |
10 × ₹3.81
₹38.10
excl. GST
₹44.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ30CA
₹38.10 for 10 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 8.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 33.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.116 g
Overview
Applications
- Input/Output Interface - AC/DC Power Supply - Low-Frequency Signal Transmission Lines (RS232, RS485, etc.)
Key features
- Surface mount application optimized for board space
- Low-profile package
- Built-in strain relief structure
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 400W peak pulse power capability at 10/1000 μs waveform
- Repetition rate (duty cycle): 0.01%
- Fast response time
- Typical reverse current less than 1 μA above 10V
- Plastic package meets UL 94V-0 flammability rating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSZ1SMA30CAT3G#C42401969HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 50 | ₹10.91 · 50 in stock | View |
 | SMAJ33CA#C7466473HXY MOSFET · SMA(DO-214AC) | HXY MOSFET | SMA(DO-214AC) | 4,770 | ₹4.25 · 4,770 in stock | View |
