DIODESDatasheet (PDF)

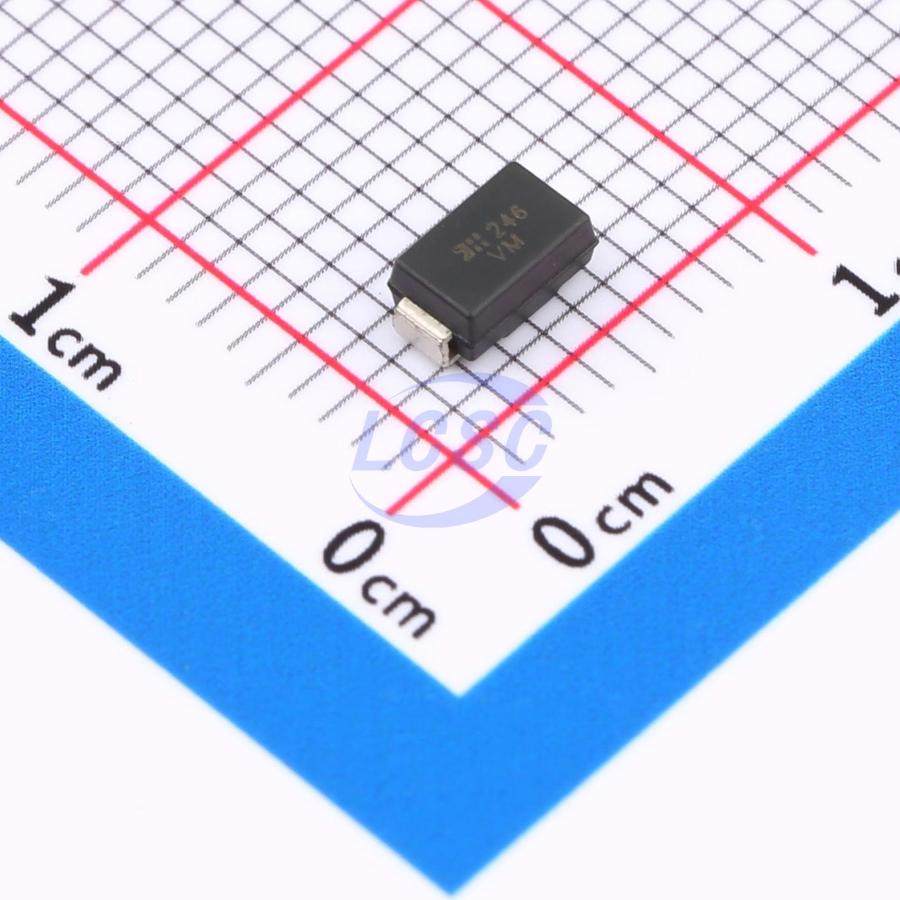

SMAJ33CA-13-F
53.3VC Clamp 7.5A Ipp TVS DIODE SMA
SMAROHS CompliantActive
TVS DIODE 33VWM 53.3VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ33CA-13-F
- Store part #
- C134982
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C134982
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.58 | ₹147.90 |
| 50+ | ₹24.29 | ₹1,214.50 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 2,500+ | ₹15.97 | ₹39,925.00 |
| 5,000+ | ₹15.21 | ₹76,050.00 |
5 × ₹29.58
₹147.90
excl. GST
₹174.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ33CA-13-F
₹147.90 for 5 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 7.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ33CA#C5353134FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 7,500 | ₹4.33 · 7,500 in stock | View |
 | SMAJ33CA#C19077549R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 2,04,750 | ₹3.74 · 2,04,750 in stock | View |
 | SMAJ33CAHE3_A/H#C1978969VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 305 | ₹37.55 · 305 in stock | View |
 | SMAJ33CAHM3_A/H#C1979816VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 50 | ₹46.00 · 50 in stock | View |
 | SMAJ33CA#C20623841Brightking · SMA(DO-214AC) | Brightking | SMA(DO-214AC) | 5,000 | ₹6.76 · 5,000 in stock | View |
