TDSEMICDatasheet (PDF)

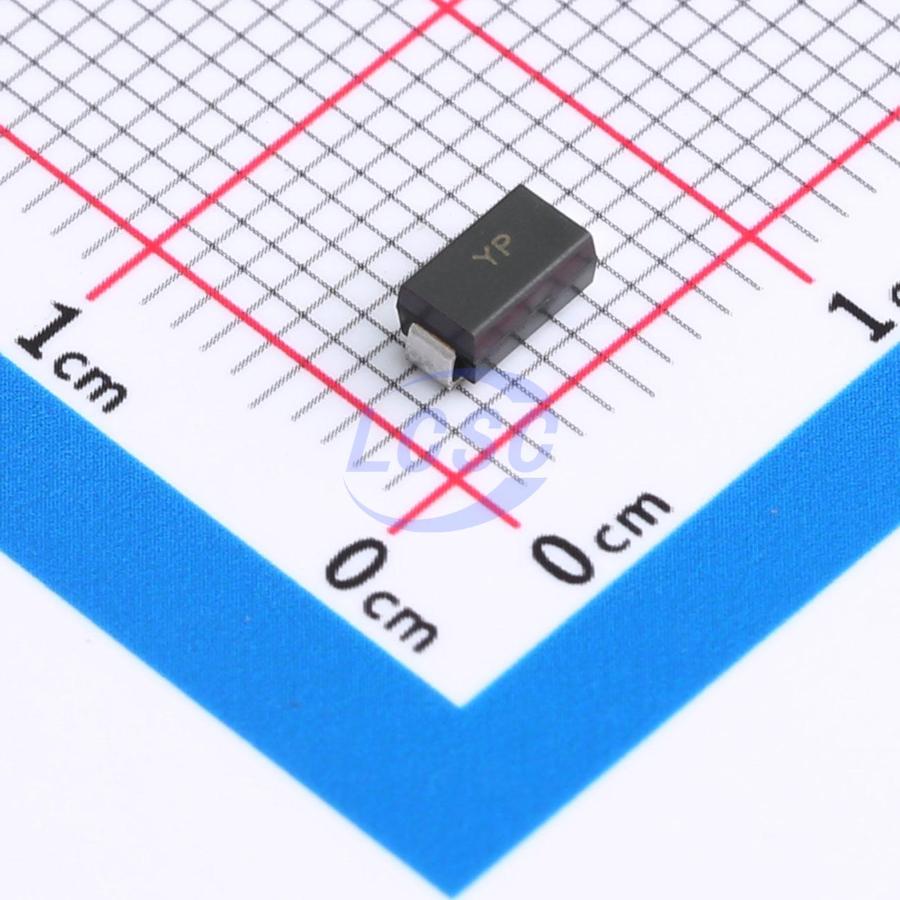

SMAJ36CA YP
58.1VC Clamp 6.9A Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS CompliantActive
TVS DIODE 36VWM 58.1VC SMA(DO-214AC)
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SMAJ36CA YP
- Store part #
- C46956336
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,980 in stock
#C46956336
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.79 | ₹95.80 |
| 200+ | ₹3.78 | ₹756.00 |
| 600+ | ₹3.21 | ₹1,926.00 |
| 5,000+ | ₹2.88 | ₹14,400.00 |
| 10,000+ | ₹2.59 | ₹25,900.00 |
| 20,000+ | ₹2.43 | ₹48,600.00 |
20 × ₹4.79
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ36CA YP
₹95.80 for 20 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.9A
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.114 g
Overview
Applications
- Consumer Electronics
- Computing
- Industrial
- Automotive Electronics
- Telecommunications
Key features
- Low-profile package for automated pick-and-place
- Glass passivated chip junction
- Available in unidirectional and bidirectional types
- 400W peak pulse power capability (10/1000μs waveform) at repetition rate (duty cycle) of 0.01% (300W above 78V)
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets J-STD-020, MSL Level 1, LF peak up to 260°C
- AEC-Q101 qualified versions available
- Automotive ordering codes: base P/N HE3 or P/N HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ33CA YM-TD#C52437607TDSEMIC · SMA | TDSEMIC | SMA | 15,180 | ₹5.53 · 15,180 in stock | View |
