DIODESDatasheet (PDF)

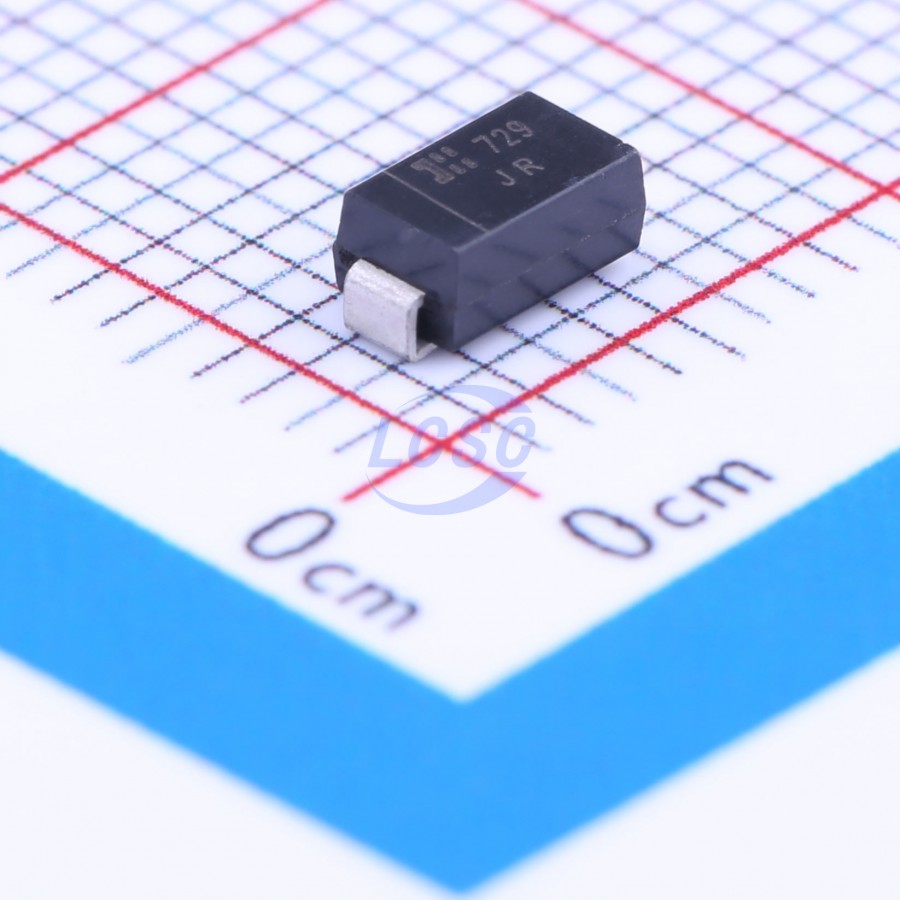

SMAJ40A-13-F
64.5VC Clamp 6.2A@8/20us Ipp TVS DIODE SMA
SMAROHS CompliantActive
TVS DIODE 40VWM 64.5VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ40A-13-F
- Store part #
- C134985
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C134985
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.79 | ₹88.95 |
| 50+ | ₹13.96 | ₹698.00 |
| 150+ | ₹12.04 | ₹1,806.00 |
| 500+ | ₹10.60 | ₹5,300.00 |
| 2,500+ | ₹9.45 | ₹23,625.00 |
| 5,000+ | ₹8.88 | ₹44,400.00 |
5 × ₹17.79
₹88.95
excl. GST
₹104.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ40A-13-F
₹88.95 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 49.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ40A#C1509538JSCJ · SMAG | JSCJ | SMAG | 2,330 | ₹7.67 · 2,330 in stock | View |
 | SMAJ40A#C49057562High Diode · SMAG | High Diode | SMAG | 4,960 | ₹5.60 · 4,960 in stock | View |
 | SMAJ40A#C44511747SUNMATE Elec · SMA | SUNMATE Elec | SMA | 2,180 | ₹6.71 · 2,180 in stock | View |
 | SMAJ40A#C5353177FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 3,980 | ₹4.33 · 3,980 in stock | View |
 | CJSMAJ40A#C7499077JSCJ · SMAG | JSCJ | SMAG | On request | ₹6.92 · 0 in stock | View |
