DIODESDatasheet (PDF)

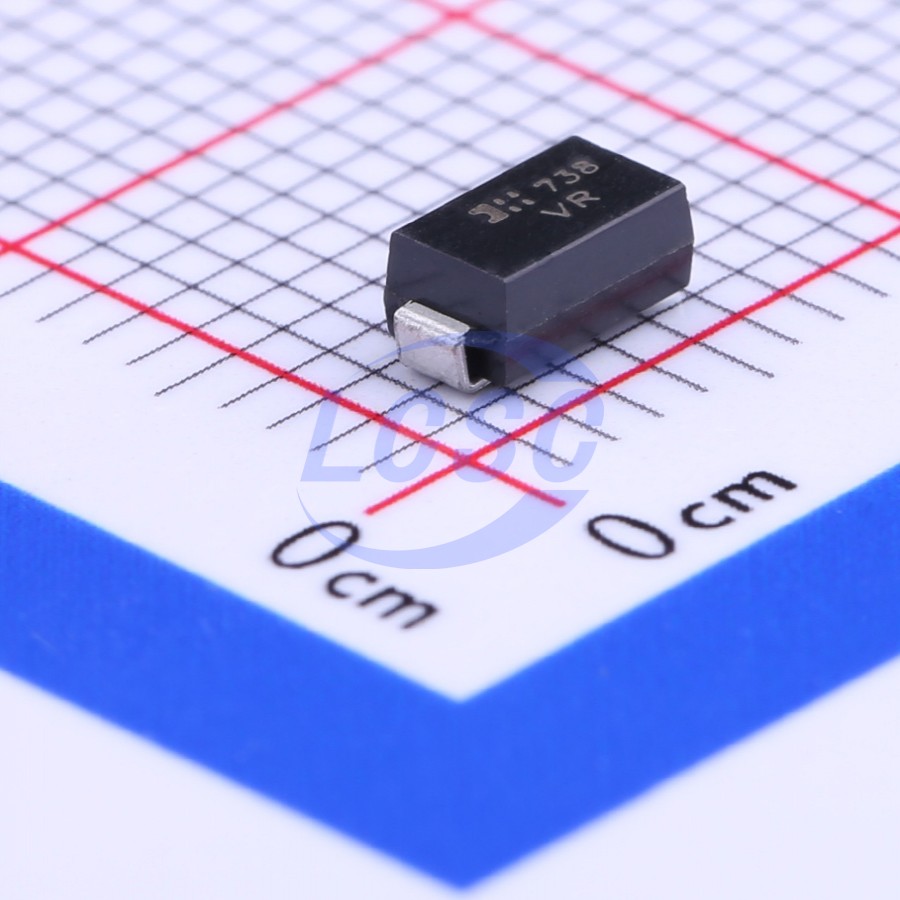

SMAJ40CA-13-F
64.5VC Clamp 6.2A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 40VWM 64.5VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ40CA-13-F
- Store part #
- C134986
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C134986
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.70 | ₹168.50 |
| 50+ | ₹28.06 | ₹1,403.00 |
| 150+ | ₹25.64 | ₹3,846.00 |
| 500+ | ₹22.62 | ₹11,310.00 |
| 2,500+ | ₹21.29 | ₹53,225.00 |
| 5,000+ | ₹20.48 | ₹1,02,400.00 |
5 × ₹33.70
₹168.50
excl. GST
₹198.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ40CA-13-F
₹168.50 for 5 + GST
Specifications
- Clamping Voltage
- 64.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 49.1V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ40CAQ-13-F#C1978270DIODES · SMA | DIODES | SMA | 4,005 | ₹28.23 · 4,005 in stock | View |
 | SMAJ40CA#C6807792FUXINSEMI · SMA | FUXINSEMI | SMA | 310 | ₹4.64 · 310 in stock | View |
 | SMAJ40CA#C5353136FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,680 | ₹4.33 · 4,680 in stock | View |
 | CJSMAJ40CA#C7499109JSCJ · SMAG | JSCJ | SMAG | 300 | ₹6.95 · 300 in stock | View |
 | SMAJ40CA#C151933BORN · SMA(DO-214AC) | BORN | SMA(DO-214AC) | 2,470 | ₹8.24 · 2,470 in stock | View |
