DIODESDatasheet (PDF)

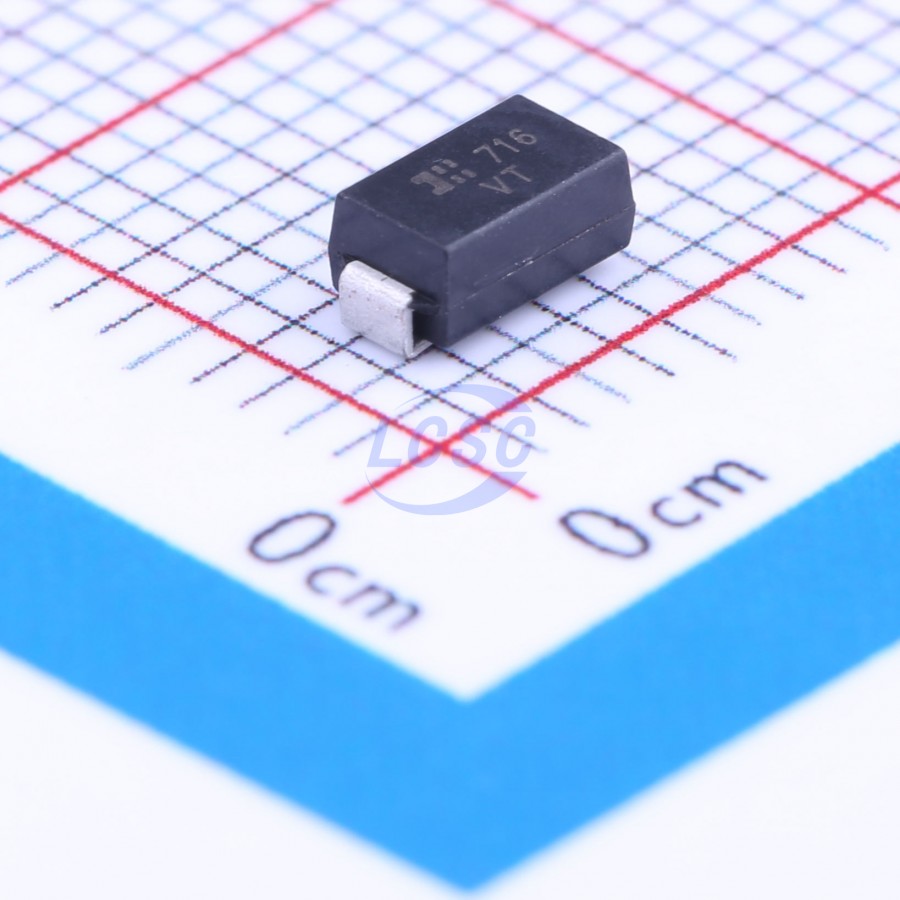

SMAJ43CA-13-F
69.4VC Clamp 5.7A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 43VWM 69.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ43CA-13-F
- Store part #
- C134988
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
655 in stock
#C134988
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.59 | ₹57.95 |
| 50+ | ₹11.34 | ₹567.00 |
| 150+ | ₹11.18 | ₹1,677.00 |
| 500+ | ₹11.01 | ₹5,505.00 |
5 × ₹11.59
₹57.95
excl. GST
₹68.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ43CA-13-F
₹57.95 for 5 + GST
Specifications
- Clamping Voltage
- 69.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.7A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 52.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 43V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ43CAQ-13-F#C5249226DIODES · SMA | DIODES | SMA | 3,860 | ₹28.68 · 3,860 in stock | View |
 | SMAJ43CA#C1509536JSCJ · SMAG | JSCJ | SMAG | 3,660 | ₹6.96 · 3,660 in stock | View |
 | SMAJ43CA#C5353137FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,000 | ₹4.33 · 4,000 in stock | View |
 | SMAJ43CA#C53278442TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,500 | ₹5.05 · 4,500 in stock | View |
 | CJSMAJ43CA#C7499110JSCJ · SMAG | JSCJ | SMAG | 70 | ₹8.77 · 70 in stock | View |
