DIODESDatasheet (PDF)

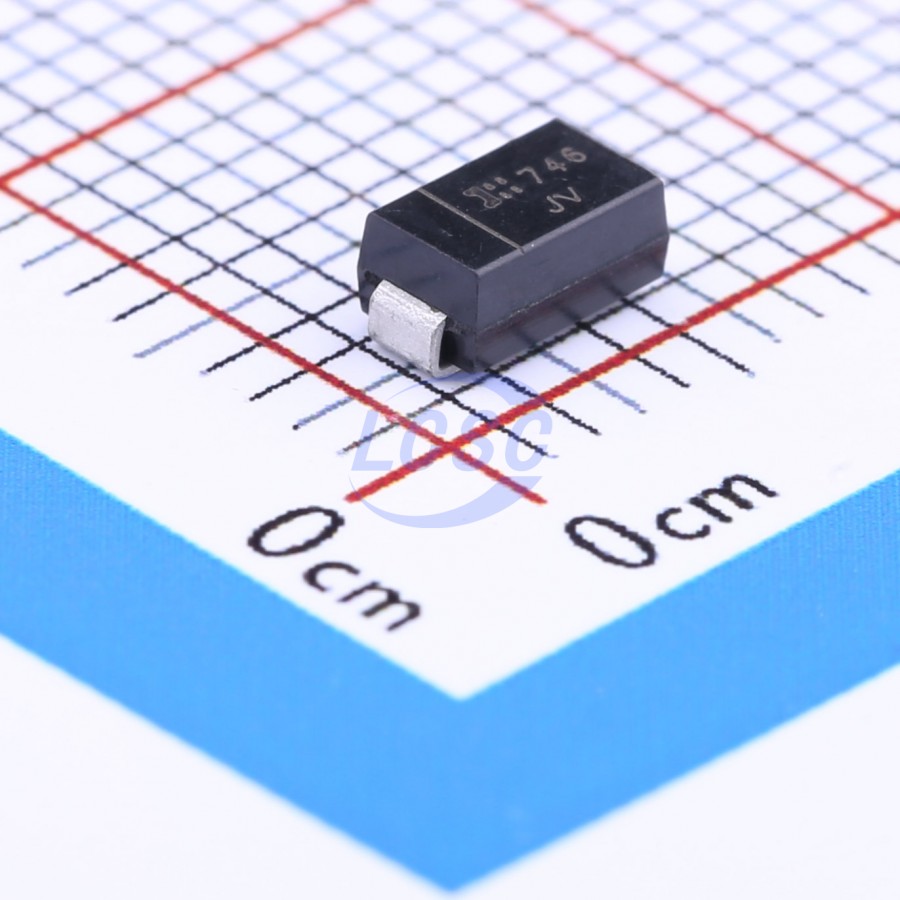

SMAJ45A-13-F
72.7VC Clamp 5.5A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 45VWM 72.7VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ45A-13-F
- Store part #
- C134989
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C134989
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.41 | ₹127.05 |
| 50+ | ₹22.39 | ₹1,119.50 |
| 150+ | ₹20.88 | ₹3,132.00 |
| 500+ | ₹19.74 | ₹9,870.00 |
| 2,500+ | ₹18.84 | ₹47,100.00 |
| 5,000+ | ₹18.38 | ₹91,900.00 |
5 × ₹25.41
₹127.05
excl. GST
₹149.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ45A-13-F
₹127.05 for 5 + GST
Specifications
- Clamping Voltage
- 72.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 55.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ45A#C1509535JSCJ · SMAG | JSCJ | SMAG | 3,350 | ₹7.67 · 3,350 in stock | View |
 | SMAJ45A#C5353179FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 9,080 | ₹4.19 · 9,080 in stock | View |
 | CJSMAJ45A#C7499079JSCJ · SMAG | JSCJ | SMAG | 3,190 | ₹6.27 · 3,190 in stock | View |
 | SMAJ45A#C20883298OTW · SMA(DO-214AC) | OTW | SMA(DO-214AC) | 5,000 | ₹3.29 · 5,000 in stock | View |
 | SMAJ45A#C49010229KUU · SMA | KUU | SMA | 5,000 | ₹3.84 · 5,000 in stock | View |
