DIODESDatasheet (PDF)

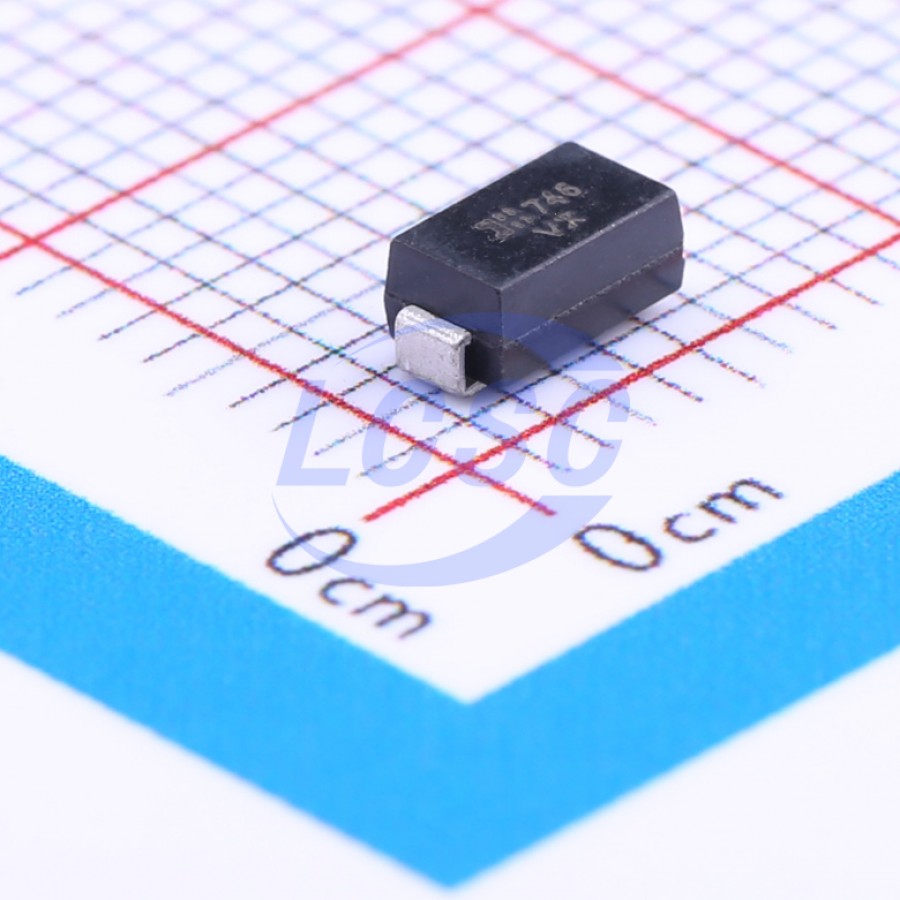

SMAJ48CA-13-F
77.4VC Clamp 5.2A@8/20us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 48VWM 77.4VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ48CA-13-F
- Store part #
- C134992
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C134992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.30 | ₹146.50 |
| 50+ | ₹23.27 | ₹1,163.50 |
| 150+ | ₹20.68 | ₹3,102.00 |
| 500+ | ₹17.45 | ₹8,725.00 |
| 2,500+ | ₹16.01 | ₹40,025.00 |
| 5,000+ | ₹15.15 | ₹75,750.00 |
5 × ₹29.30
₹146.50
excl. GST
₹172.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ48CA-13-F
₹146.50 for 5 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 58.9V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ48CA#C21714341Slkor · SMA(DO-214AC) | Slkor | SMA(DO-214AC) | 760 | ₹6.42 · 760 in stock | View |
 | SMAJ48CA#C151245Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 6,240 | ₹14.34 · 6,240 in stock | View |
 | SMAJ48CA#C173501MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 8,460 | ₹5.32 · 8,460 in stock | View |
 | SMAJ48CA#C2922198GOODWORK · DO-214AC(SMA) | GOODWORK | DO-214AC(SMA) | 3,480 | ₹4.66 · 3,480 in stock | View |
 | SMAJ48CA#C492926SMC · SMA | SMC | SMA | 2,640 | ₹6.75 · 2,640 in stock | View |
