DIODESDatasheet (PDF)

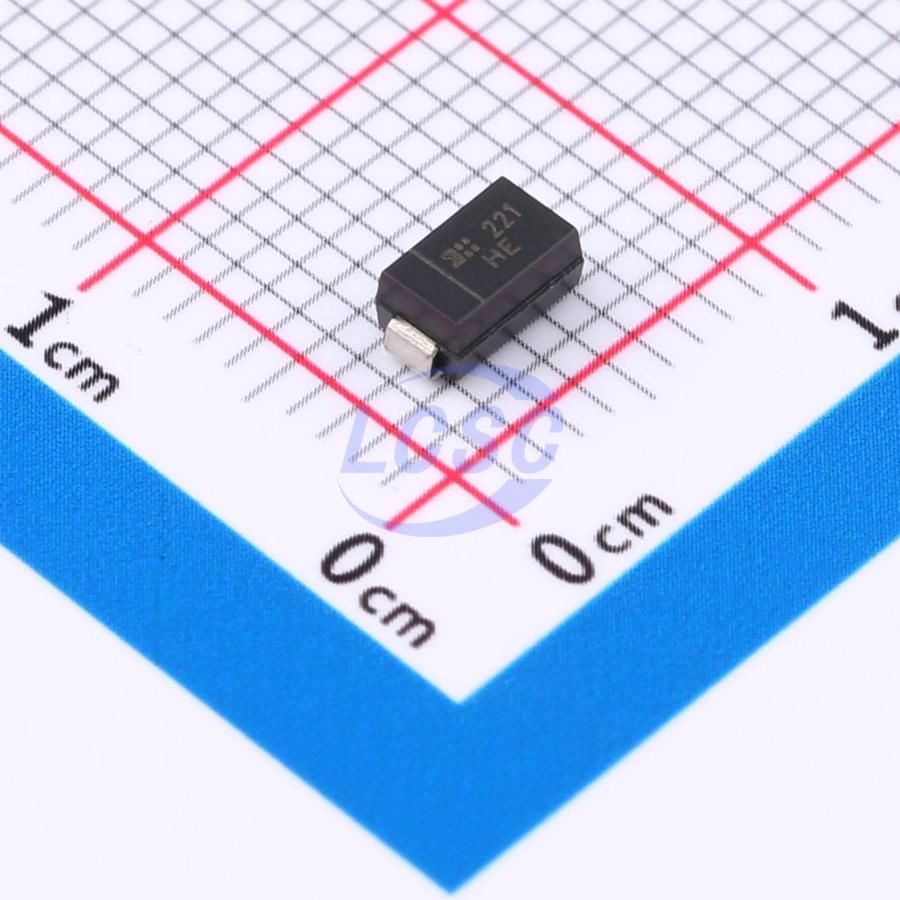

SMAJ5.0AQ-13-F
9.2VC Clamp 43.6A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ5.0AQ-13-F
- Store part #
- C5249229
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
370 in stock
#C5249229
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.17 | ₹140.85 |
| 50+ | ₹22.36 | ₹1,118.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹16.78 | ₹8,390.00 |
| 2,500+ | ₹15.39 | ₹38,475.00 |
| 5,000+ | ₹14.55 | ₹72,750.00 |
5 × ₹28.17
₹140.85
excl. GST
₹166.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ5.0AQ-13-F
₹140.85 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 43.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ5.0A#C2683700ZHIDE · DO-214AC(SMA) | ZHIDE | DO-214AC(SMA) | 2,120 | ₹8.60 · 2,120 in stock | View |
 | SMAJ5.0A#C2688153WPMtek · SMA(DO-214AC) | WPMtek | SMA(DO-214AC) | 300 | ₹5.60 · 300 in stock | View |
 | SMAJ5.0A#C2758494UMW · DO-214AC(SMA) | UMW | DO-214AC(SMA) | 18,000 | ₹4.47 · 18,000 in stock | View |
 | SMAJ5.0A#C2925443Liown · SMA(DO-214AC) | Liown | SMA(DO-214AC) | 51,860 | ₹5.17 · 51,860 in stock | View |
 | P4SMAJ5.0A_R1_00001#C391580PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 1,925 | ₹15.04 · 1,925 in stock | View |
