DIODESDatasheet (PDF)

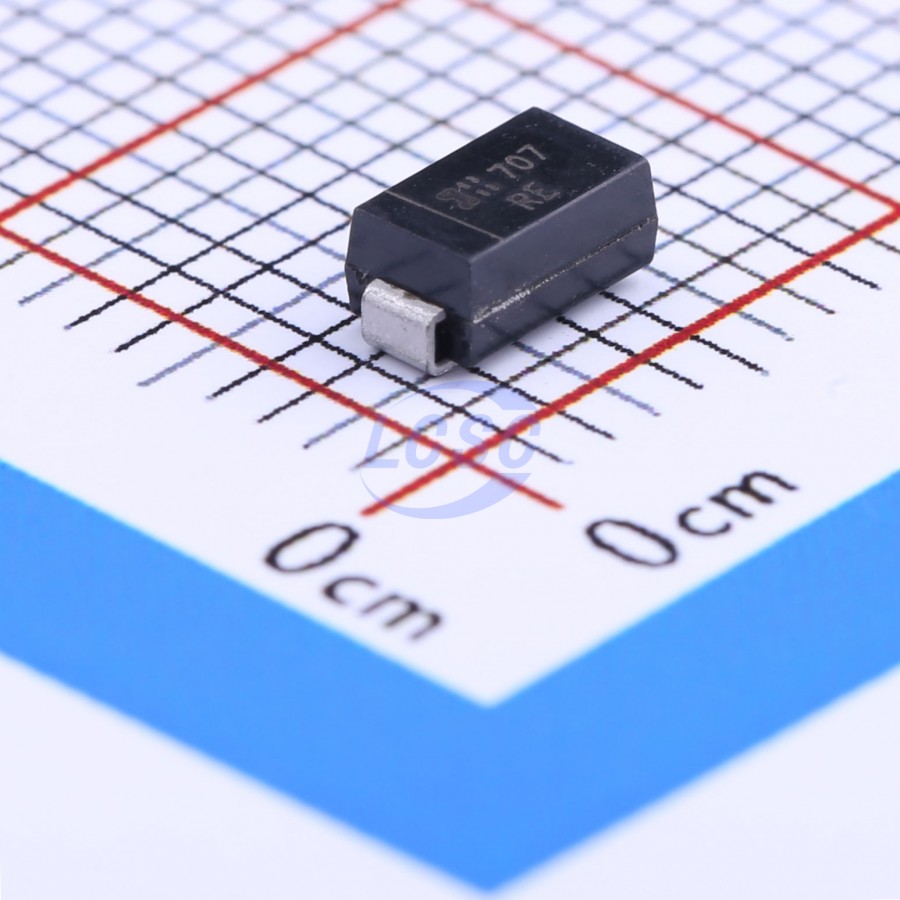

SMAJ54A-13-F
87.1VC Clamp 4.6A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 54VWM 87.1VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ54A-13-F
- Store part #
- C134996
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
870 in stock
#C134996
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.11 | ₹165.55 |
| 50+ | ₹27.32 | ₹1,366.00 |
| 150+ | ₹24.85 | ₹3,727.50 |
| 500+ | ₹21.75 | ₹10,875.00 |
| 2,500+ | ₹20.37 | ₹50,925.00 |
| 5,000+ | ₹19.54 | ₹97,700.00 |
5 × ₹33.11
₹165.55
excl. GST
₹195.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ54A-13-F
₹165.55 for 5 + GST
Specifications
- Clamping Voltage
- 87.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.6A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 66.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 54V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
