DIODESDatasheet (PDF)

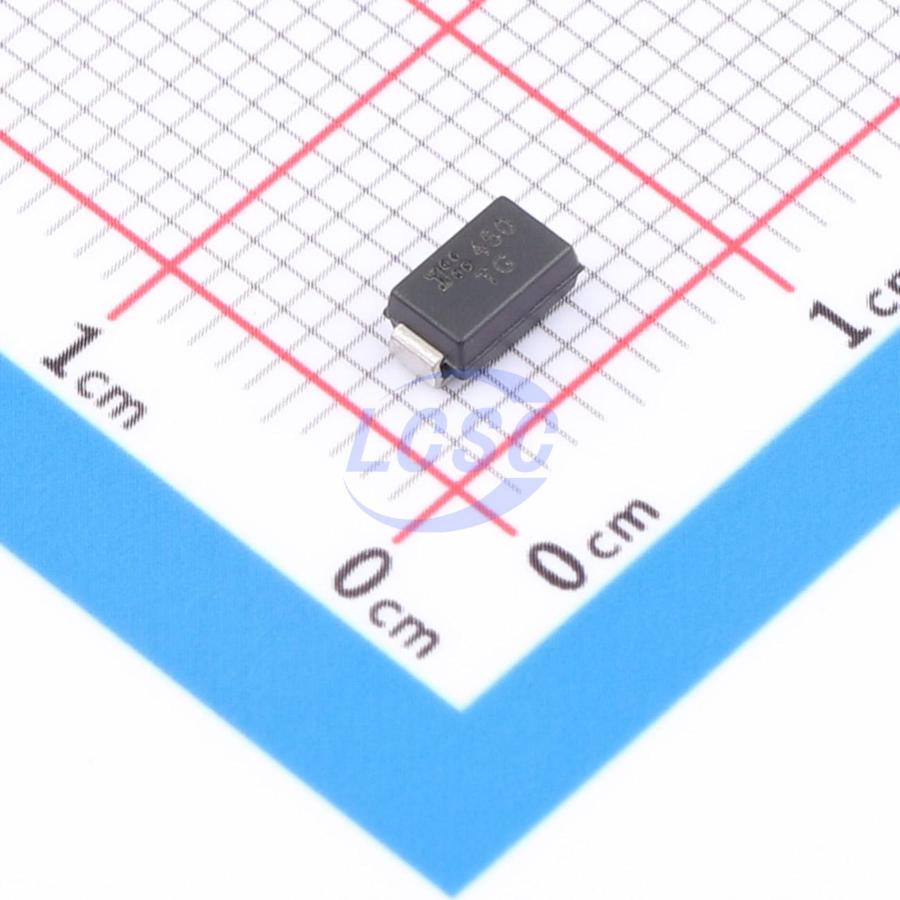

SMAJ6.0CAQ-13-F
10.3V 38.8A 400W 7.37V Bidirectional 6V SMA TVS Diodes RoHS
SMAROHS CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ6.0CAQ-13-F
- Store part #
- C23673752
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C23673752
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.77 | ₹52.77 |
| 10+ | ₹51.49 | ₹514.90 |
| 30+ | ₹50.63 | ₹1,518.90 |
| 100+ | ₹49.77 | ₹4,977.00 |
1 × ₹52.77
₹52.77
excl. GST
₹62.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ6.0CAQ-13-F
₹52.77 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 38.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 800uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ6.0CA-13-F#C134999DIODES · SMA | DIODES | SMA | 3,810 | ₹22.56 · 3,810 in stock | View |
 | SMAJ6.0CA#C19077526R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 2,91,480 | ₹5.42 · 2,91,480 in stock | View |
 | SMAJ6.0CA#C2985626KUU · SMA | KUU | SMA | 1,040 | ₹4.45 · 1,040 in stock | View |
 | SMAJ6.0CA-JSM#C41382500JSMSEMI · SMA | JSMSEMI | SMA | 500 | ₹4.13 · 500 in stock | View |
 | SMAJ6.0CA#C47345807baocheng · SMA(DO-214AC) | baocheng | SMA(DO-214AC) | 13,880 | ₹5.24 · 13,880 in stock | View |
