DIODESDatasheet (PDF)

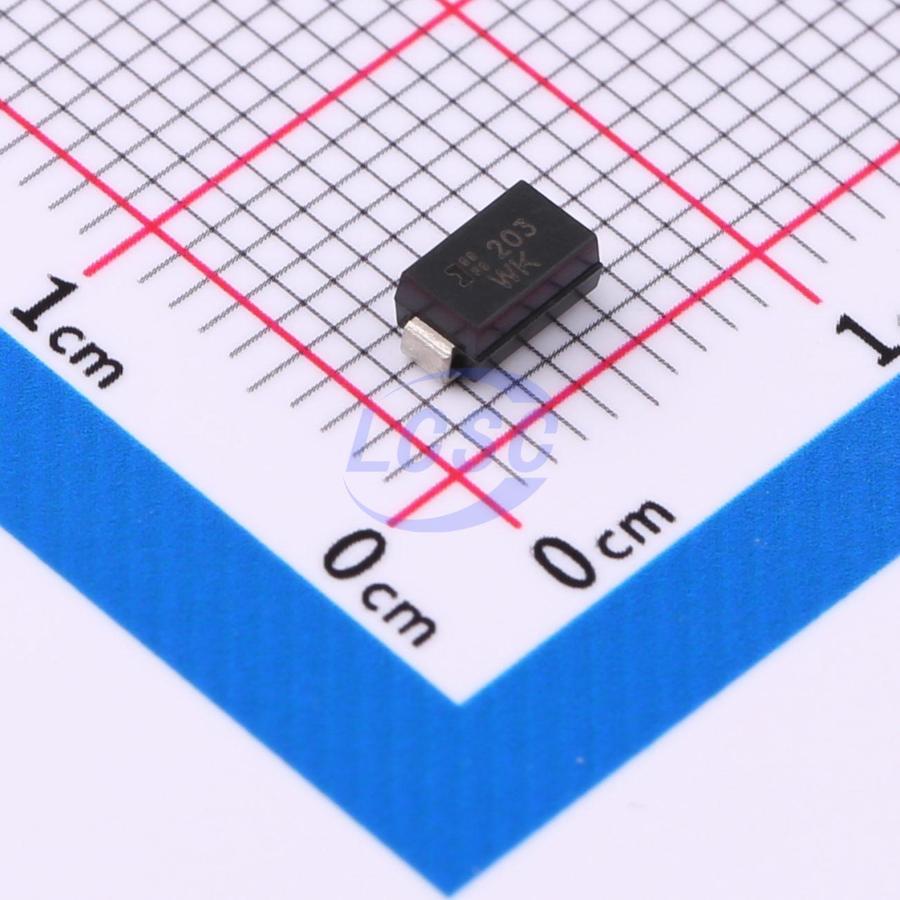

SMAJ60CAQ-13-F
96.8VC Clamp 4.1A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 60VWM 96.8VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ60CAQ-13-F
- Store part #
- C1978670
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1978670
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.63 | ₹128.15 |
| 50+ | ₹21.78 | ₹1,089.00 |
| 150+ | ₹19.86 | ₹2,979.00 |
| 500+ | ₹18.40 | ₹9,200.00 |
| 2,500+ | ₹17.25 | ₹43,125.00 |
| 5,000+ | ₹16.67 | ₹83,350.00 |
5 × ₹25.63
₹128.15
excl. GST
₹151.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ60CAQ-13-F
₹128.15 for 5 + GST
Specifications
- Clamping Voltage
- 96.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 73.7V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ60CA-13-F#C135003DIODES · SMA | DIODES | SMA | 5,270 | ₹17.05 · 5,270 in stock | View |
 | SMAJ60CA#C5353142FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 7,420 | ₹4.34 · 7,420 in stock | View |
 | CJSMAJ60CA#C7499116JSCJ · SMAG | JSCJ | SMAG | 500 | ₹6.95 · 500 in stock | View |
 | SMAJ60CA#C152111BORN · SMA(DO-214AC) | BORN | SMA(DO-214AC) | 16,100 | ₹7.91 · 16,100 in stock | View |
 | SMAJ60CA-E3/61#C1973115VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,430 | ₹20.70 · 1,430 in stock | View |
