DIODESDatasheet (PDF)

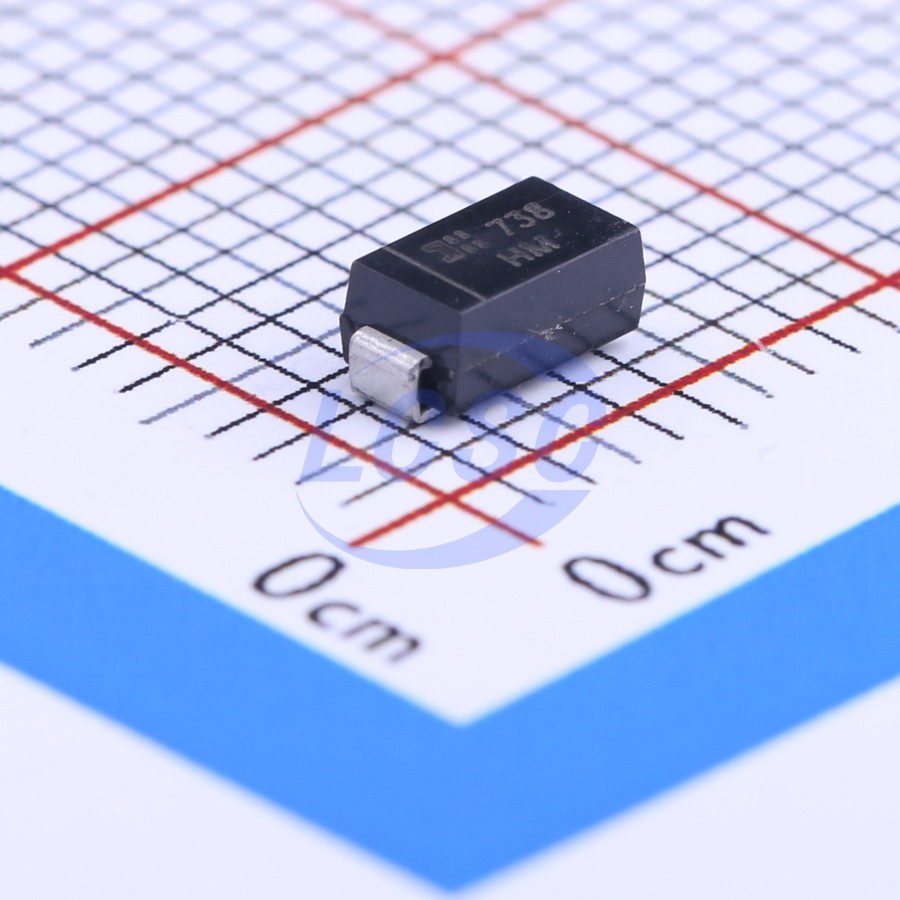

SMAJ7.0A-13-F
12VC Clamp 33.3A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 7VWM 12VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ7.0A-13-F
- Store part #
- C135006
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C135006
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.88 | ₹144.40 |
| 50+ | ₹22.93 | ₹1,146.50 |
| 150+ | ₹20.37 | ₹3,055.50 |
| 500+ | ₹17.20 | ₹8,600.00 |
| 2,500+ | ₹15.78 | ₹39,450.00 |
| 5,000+ | ₹14.92 | ₹74,600.00 |
5 × ₹28.88
₹144.40
excl. GST
₹170.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ7.0A-13-F
₹144.40 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 33.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 8.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
