DIODESDatasheet (PDF)

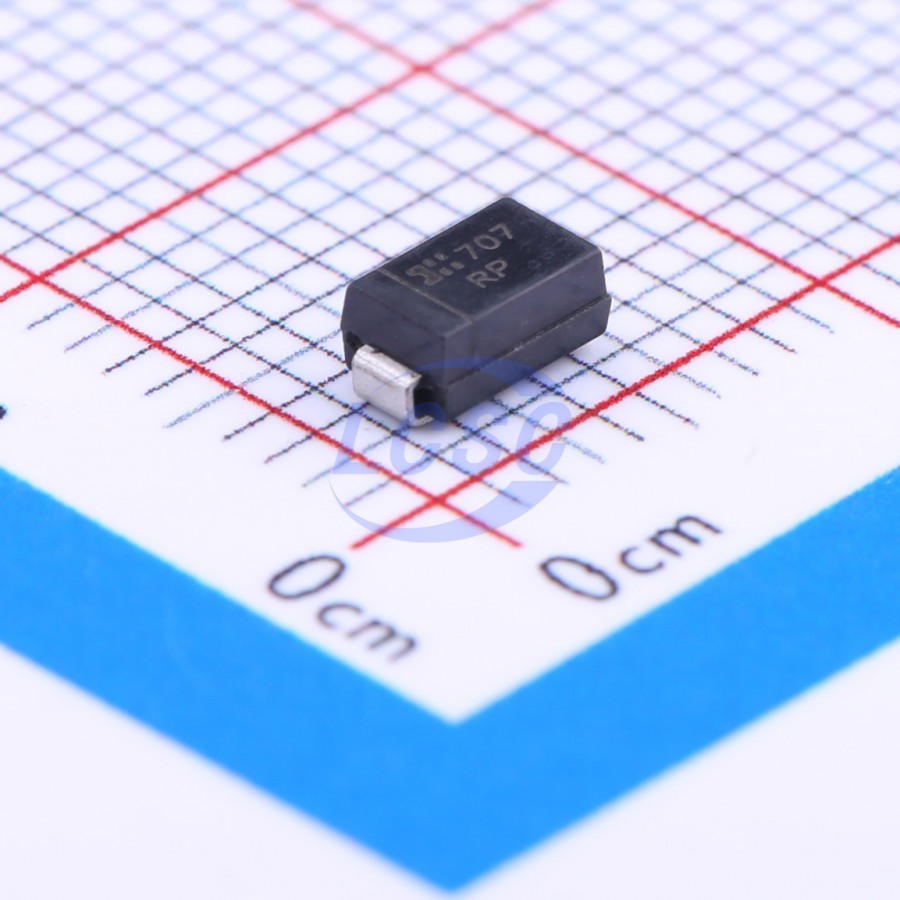

SMAJ70A-13-F
113VC Clamp 3.5A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 70VWM 113VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ70A-13-F
- Store part #
- C135010
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C135010
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.86 | ₹74.30 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.40 | ₹1,560.00 |
| 500+ | ₹9.29 | ₹4,645.00 |
| 2,500+ | ₹8.40 | ₹21,000.00 |
| 5,000+ | ₹7.95 | ₹39,750.00 |
5 × ₹14.86
₹74.30
excl. GST
₹87.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ70A-13-F
₹74.30 for 5 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 86V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ70A#C3036218JSCJ · SMAG | JSCJ | SMAG | 1,880 | ₹9.59 · 1,880 in stock | View |
 | CJSMAJ70A#C7499086JSCJ · SMAG | JSCJ | SMAG | 3,840 | ₹6.93 · 3,840 in stock | View |
 | SMAJ70A#C152110BORN · SMA | BORN | SMA | 4,750 | ₹7.58 · 4,750 in stock | View |
 | SMAJ70A#C53278423TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,130 | ₹5.08 · 4,130 in stock | View |
 | SMAJ70A#C55259779luJing · SMA | luJing | SMA | 4,890 | ₹5.37 · 4,890 in stock | View |
