VISHAYDatasheet (PDF)
SMAJ70A-E3/61
113VC Clamp 3.5A Ipp TVS DIODE DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
TVS DIODE 70VWM 113VC DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAJ70A-E3/61
- Store part #
- C3706531
- Package / case
- DO-214AC(SMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,305 in stock
#C3706531
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.80 | ₹84.00 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹11.35 | ₹1,702.50 |
| 500+ | ₹9.99 | ₹4,995.00 |
| 1,800+ | ₹8.90 | ₹16,020.00 |
| 5,400+ | ₹8.36 | ₹45,144.00 |
5 × ₹16.80
₹84.00
excl. GST
₹99.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel

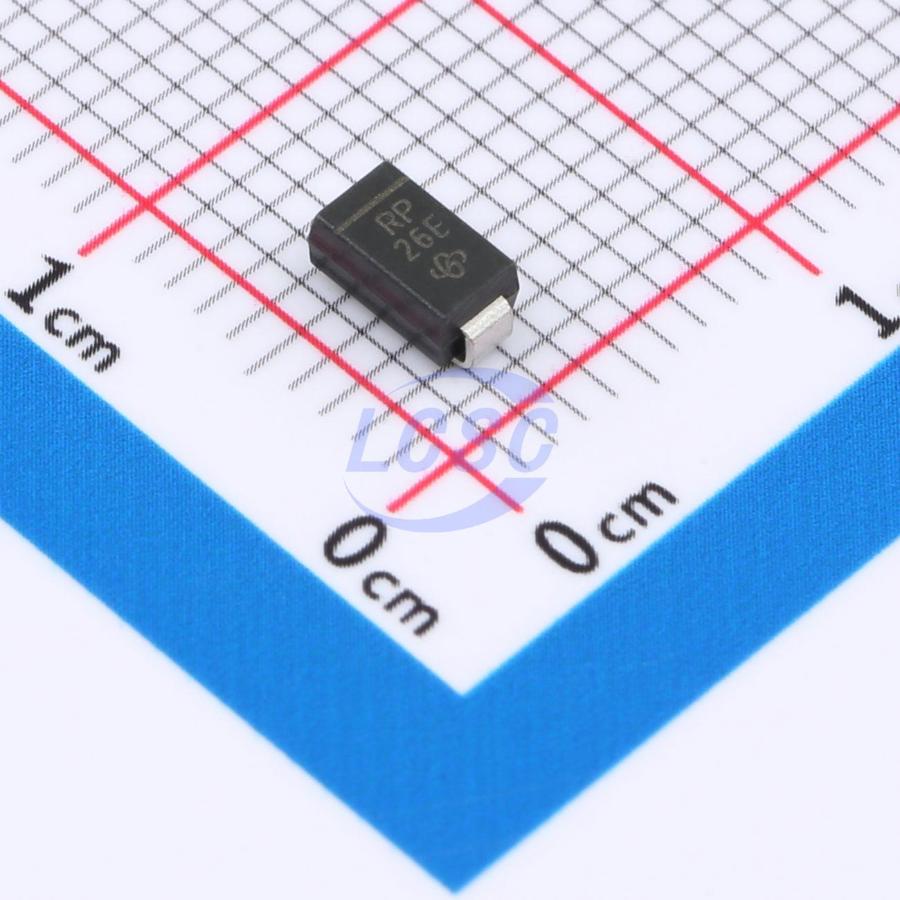

SMAJ70A-E3/61
₹84.00 for 5 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 77.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- For bidirectional use CA suffix (e.g. SMAJ10CA).
- Electrical characteristics apply in both directions.
- Low profile package Available
- Ideal for automated placement
- Glass passivated chip junction
- Available in unidirectional and bidirectional RoHS COMPLIANT
- 400 W peak pulse power capability with a HALOGEN 10/1000 μs waveform, repetitive rate (duty FREE cycle): 0.01 % (300 W above 78 V) Available
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
