DIODESDatasheet (PDF)

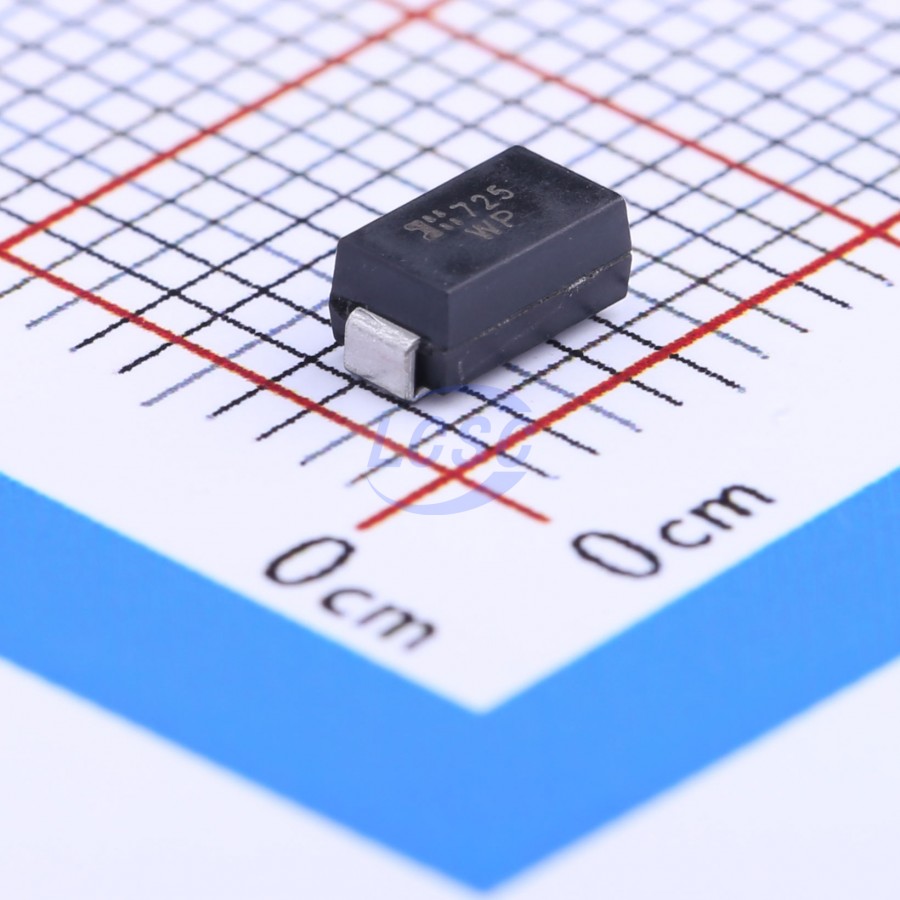

SMAJ70CA-13-F
113VC Clamp 3.5A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 70VWM 113VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ70CA-13-F
- Store part #
- C135011
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C135011
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.98 | ₹134.90 |
| 50+ | ₹23.79 | ₹1,189.50 |
| 150+ | ₹22.42 | ₹3,363.00 |
| 500+ | ₹20.72 | ₹10,360.00 |
| 2,500+ | ₹19.96 | ₹49,900.00 |
| 5,000+ | ₹19.50 | ₹97,500.00 |
5 × ₹26.98
₹134.90
excl. GST
₹159.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ70CA-13-F
₹134.90 for 5 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 86V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ70CA#C173511MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 3,560 | ₹5.05 · 3,560 in stock | View |
 | SMAJ70CA#C1975062BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | 3 | ₹109.23 · 3 in stock | View |
| P4SMA82CA#C1975314Littelfuse · SMA(DO-214AC) | Littelfuse | SMA(DO-214AC) | 262 | ₹111.89 · 262 in stock | View | |
 | SMAJ70CA#C1509552JSCJ · SMAG | JSCJ | SMAG | 4,970 | ₹10.02 · 4,970 in stock | View |
 | SMAJ70CA#C5353144FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,720 | ₹4.33 · 4,720 in stock | View |
