DIODESDatasheet (PDF)

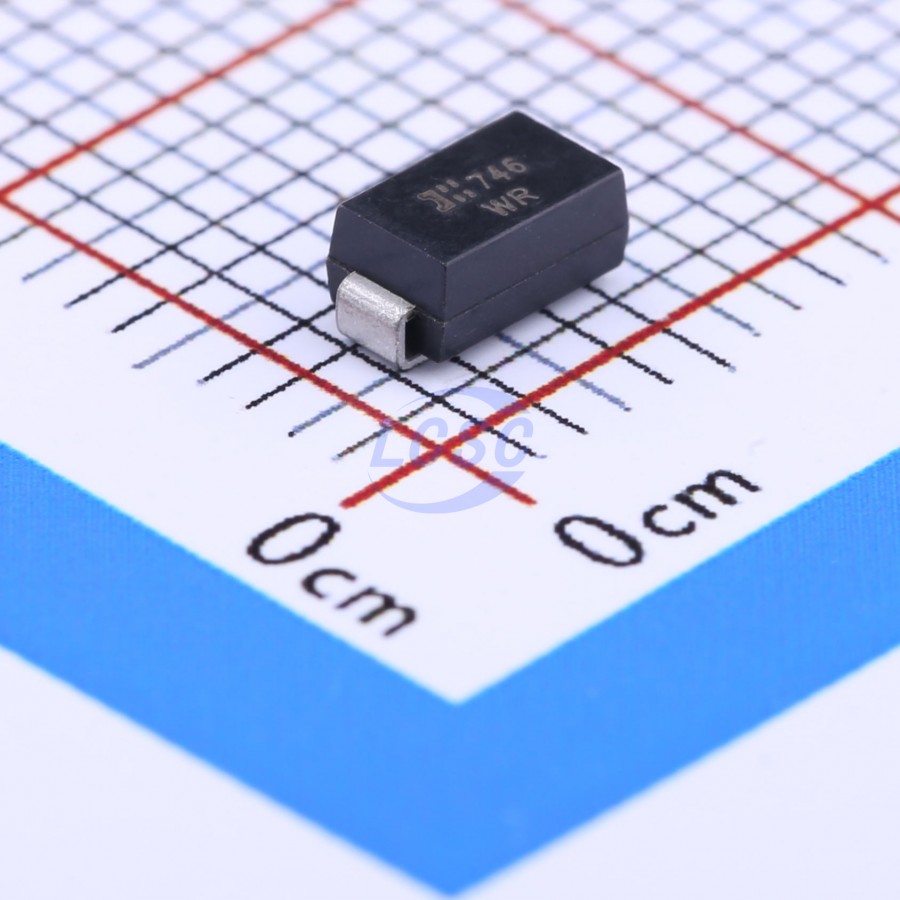

SMAJ75CA-13-F
121VC Clamp 3.3A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 75VWM 121VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ75CA-13-F
- Store part #
- C135013
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
235 in stock
#C135013
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.83 | ₹114.15 |
| 50+ | ₹19.12 | ₹956.00 |
| 150+ | ₹17.27 | ₹2,590.50 |
| 500+ | ₹15.88 | ₹7,940.00 |
| 2,500+ | ₹14.75 | ₹36,875.00 |
| 5,000+ | ₹14.20 | ₹71,000.00 |
5 × ₹22.83
₹114.15
excl. GST
₹134.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ75CA-13-F
₹114.15 for 5 + GST
Specifications
- Clamping Voltage
- 121V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 92.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ75CA#C1509554JSCJ · SMAG | JSCJ | SMAG | 5,600 | ₹7.74 · 5,600 in stock | View |
 | SMAJ75CA#C698931YANGJIE · DO-214AC(SMA) | YANGJIE | DO-214AC(SMA) | On request | ₹7.32 · 0 in stock | View |
 | CJSMAJ75CA#C7499119JSCJ · SMAG | JSCJ | SMAG | 3,970 | ₹6.95 · 3,970 in stock | View |
 | SMAJ75CA#C43063952SUNMATE Elec · SMA | SUNMATE Elec | SMA | 600 | ₹5.38 · 600 in stock | View |
 | SMAJ75CA#C5353145FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 3,120 | ₹4.33 · 3,120 in stock | View |
