DIODESDatasheet (PDF)

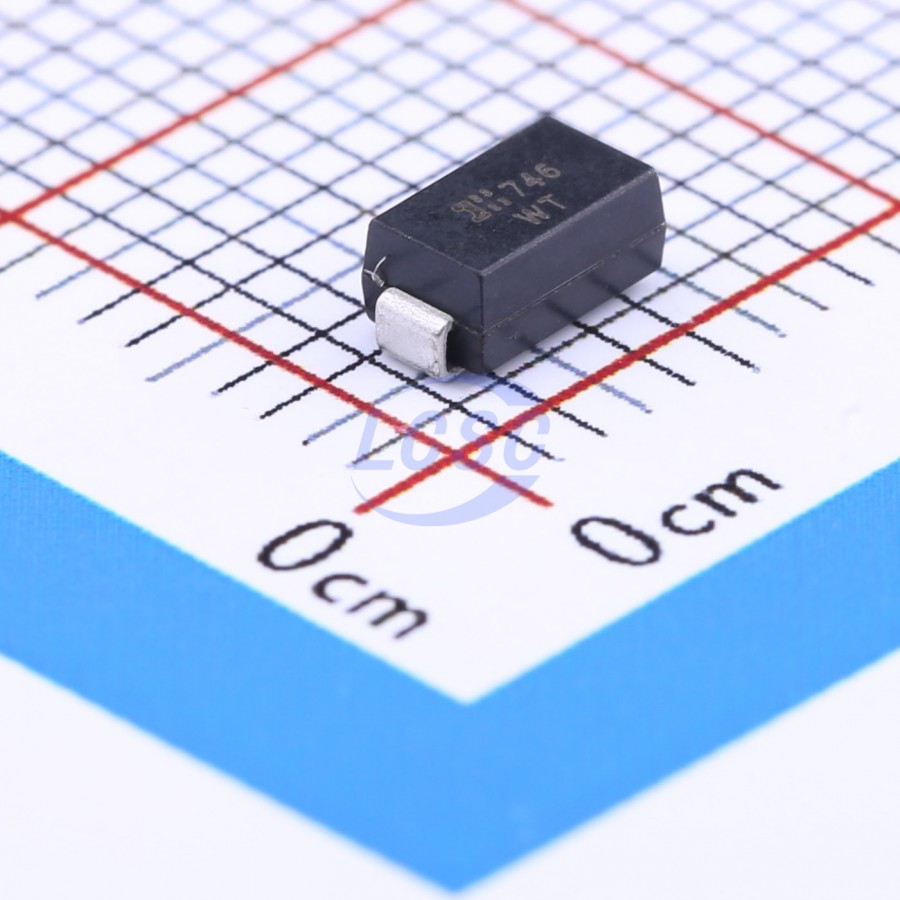

SMAJ78CA-13-F
126VC Clamp 2.2A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 78VWM 126VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ78CA-13-F
- Store part #
- C135015
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C135015
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.31 | ₹81.55 |
| 50+ | ₹15.96 | ₹798.00 |
| 150+ | ₹15.72 | ₹2,358.00 |
| 500+ | ₹15.49 | ₹7,745.00 |
5 × ₹16.31
₹81.55
excl. GST
₹96.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ78CA-13-F
₹81.55 for 5 + GST
Specifications
- Clamping Voltage
- 126V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 95.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 78V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ78CA#C173516MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 1,760 | ₹6.27 · 1,760 in stock | View |
 | SMAJ78CA#C2980417GOODWORK · DO-214AC(SMA) | GOODWORK | DO-214AC(SMA) | 740 | ₹4.22 · 740 in stock | View |
 | SMAJ78CA#C10761RUILON · DO-214AC(SMA) | RUILON | DO-214AC(SMA) | 2,030 | ₹9.67 · 2,030 in stock | View |
 | SMAJ78CA#C3720737Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 2,135 | ₹24.17 · 2,135 in stock | View |
 | SMAJ78CA#C53278450TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,280 | ₹5.08 · 2,280 in stock | View |
