DIODESDatasheet (PDF)

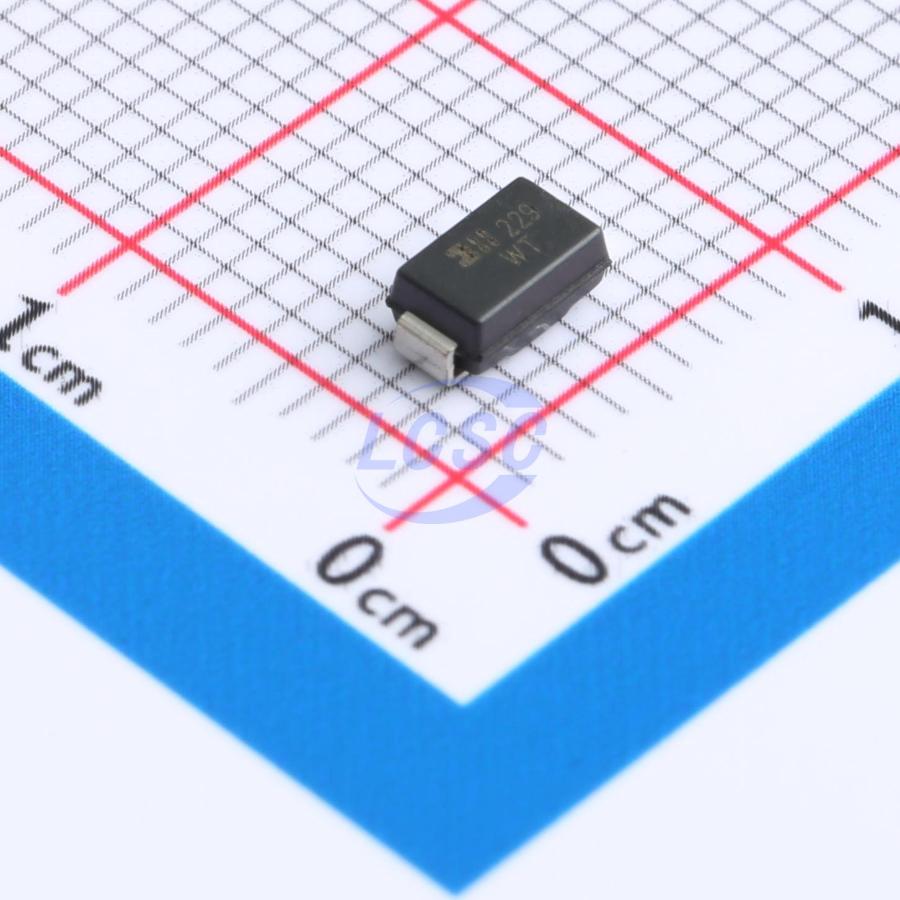

SMAJ78CAQ-13-F
126VC Clamp 3.2A@10/1000us Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 78VWM 126VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ78CAQ-13-F
- Store part #
- C5249232
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C5249232
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹18.35 | ₹917.50 |
| 200+ | ₹18.09 | ₹3,618.00 |
| 500+ | ₹17.81 | ₹8,905.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per reel
SMAJ78CAQ-13-F
₹93.75 for 5 + GST
Specifications
- Clamping Voltage
- 126V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 95.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 78V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 100 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637 - 2 and against electrostatic discharges according to ISO10605.
Key features
- 400W Peak Pulse Power Dissipation
- 5V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni - directional and Bi - directional Versions Available
- Excellent Clamping Capability
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMAJ78CA#C7499120JSCJ · SMAG | JSCJ | SMAG | 4,880 | ₹7.65 · 4,880 in stock | View |
 | SMAJ78CA#C50087769JDTfuse · SMA | JDTfuse | SMA | 4,490 | ₹6.27 · 4,490 in stock | View |
 | SMAJ78CA#C5161343ZHIDE · DO-214AC(SMA) | ZHIDE | DO-214AC(SMA) | 270 | ₹8.45 · 270 in stock | View |
 | SMAJ78CA#C173516MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 1,760 | ₹6.27 · 1,760 in stock | View |
 | SMAJ78CA#C54318627MDM · SMA | MDM | SMA | 140 | ₹3.18 · 140 in stock | View |
