DIODESDatasheet (PDF)

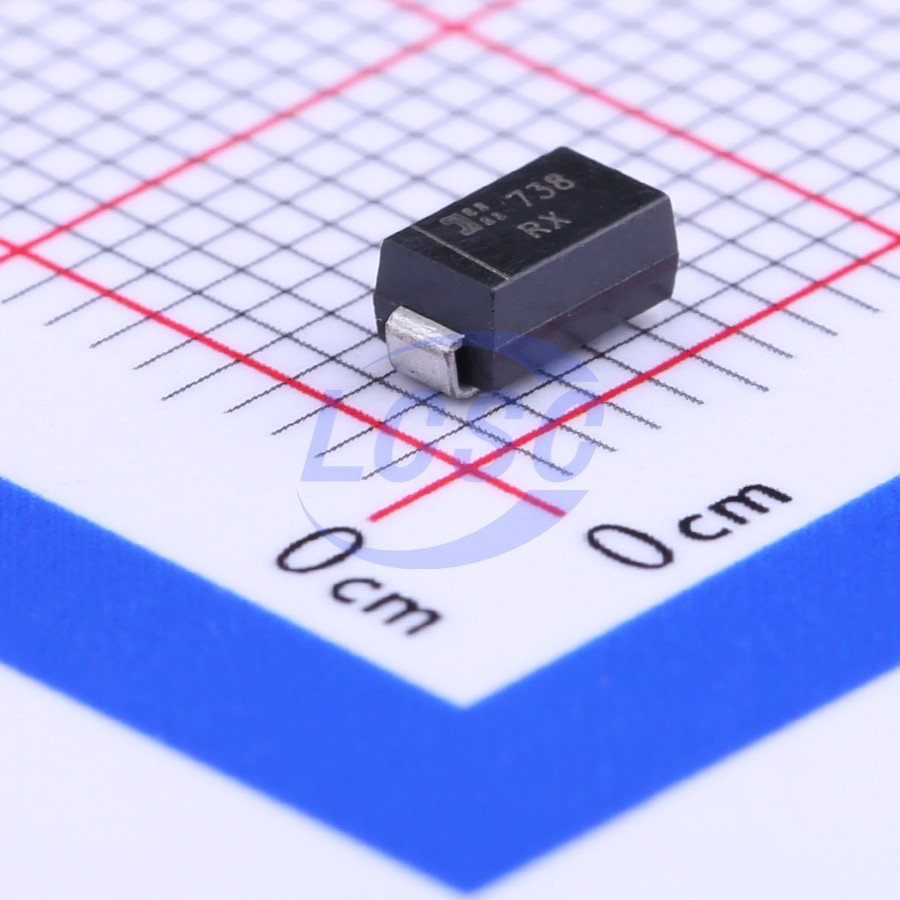

SMAJ90A-13-F
137VC Clamp 2.9A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 90VWM 137VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ90A-13-F
- Store part #
- C135024
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
985 in stock
#C135024
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.11 | ₹75.55 |
| 50+ | ₹12.09 | ₹604.50 |
| 150+ | ₹10.58 | ₹1,587.00 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 5,000+ | ₹8.10 | ₹40,500.00 |
5 × ₹15.11
₹75.55
excl. GST
₹89.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ90A-13-F
₹75.55 for 5 + GST
Specifications
- Clamping Voltage
- 137V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.9A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 111V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 90V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJSMAJ90A#C7499090JSCJ · SMAG | JSCJ | SMAG | 3,100 | ₹6.95 · 3,100 in stock | View |
| SMAJ90A#C20883306OTW · SMA(DO-214AC) | OTW | SMA(DO-214AC) | 40 | ₹3.61 · 40 in stock | View | |
 | SMAJ90A#C42394403R+O · DO-214AC(SMA) | R+O | DO-214AC(SMA) | 13,240 | ₹3.33 · 13,240 in stock | View |
 | SMAJ90A#C5161306ZHIDE · DO-214AC(SMA) | ZHIDE | DO-214AC(SMA) | 240 | ₹8.11 · 240 in stock | View |
 | SMAJ90A#C53278427TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,630 | ₹5.05 · 4,630 in stock | View |
