DIODESDatasheet (PDF)

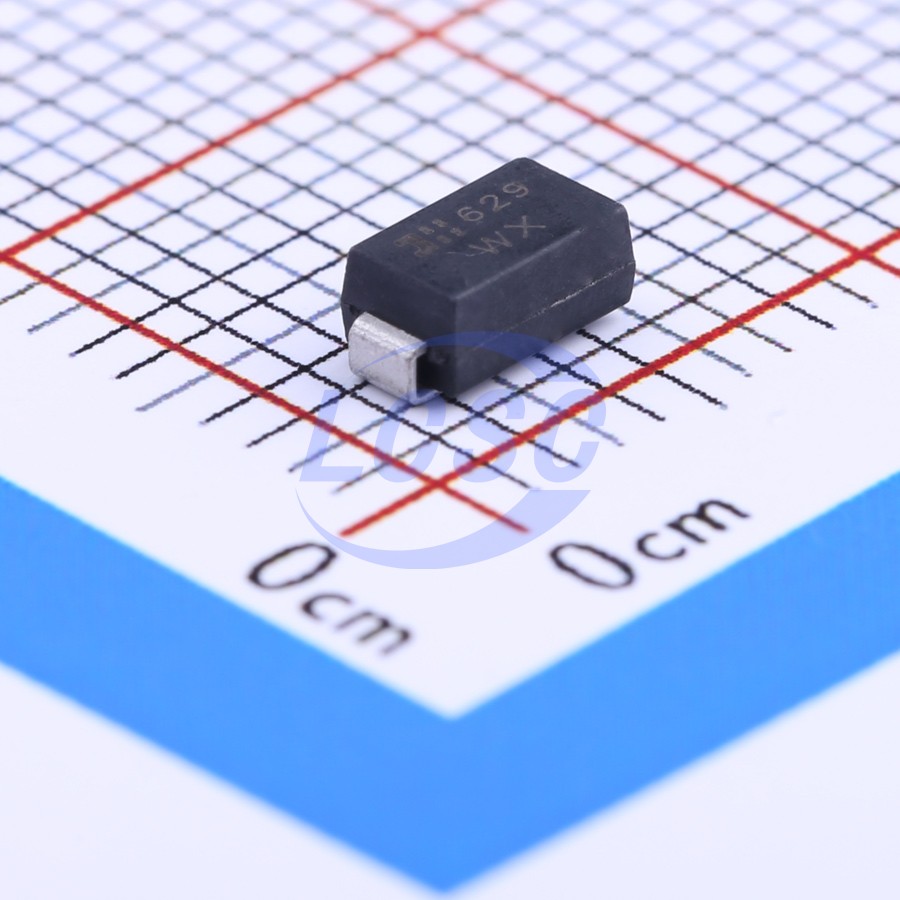

SMAJ90CA-13-F
209VC Clamp 2A Ipp TVS DIODE SMA
SMAROHS3 CompliantActive
TVS DIODE 90VWM 209VC SMA
- Manufacturer
- DIODES
- Manufacturer part #
- SMAJ90CA-13-F
- Store part #
- C135025
- Package / case
- SMA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
485 in stock
#C135025
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.48 | ₹77.40 |
| 50+ | ₹12.38 | ₹619.00 |
| 150+ | ₹10.84 | ₹1,626.00 |
| 500+ | ₹9.67 | ₹4,835.00 |
| 2,500+ | ₹8.75 | ₹21,875.00 |
| 5,000+ | ₹8.28 | ₹41,400.00 |
5 × ₹15.48
₹77.40
excl. GST
₹91.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMAJ90CA-13-F
₹77.40 for 5 + GST
Specifications
- Clamping Voltage
- 209V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 111V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 90V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- 400W Peak Pulse Power Dissipation
- Glass Passivated Die Construction
- Unidirectional and Bidirectional Versions Available
- Excellent Clamping Capability
- Fast Response Time
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAJ90CA#C224002Littelfuse · DO-214AC(SMA) | Littelfuse | DO-214AC(SMA) | 300 | ₹19.17 · 300 in stock | View |
 | SMAJ90CA#C173496MDD(Microdiode Semiconductor) · DO-214AC(SMA) | MDD(Microdiode Semiconductor) | DO-214AC(SMA) | 13,360 | ₹5.24 · 13,360 in stock | View |
 | SMAJ90CA#C5353147FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 3,560 | ₹4.33 · 3,560 in stock | View |
 | SMAJ90CA#C726809TWGMC · DO-214AC(SMA) | TWGMC | DO-214AC(SMA) | 2,400 | ₹4.97 · 2,400 in stock | View |
| SMAJ90CA#C18477637BOURNS · SMA(DO-214AC) | BOURNS | SMA(DO-214AC) | On request | ₹24.14 · 0 in stock | View | |
