VISHAYDatasheet (PDF)

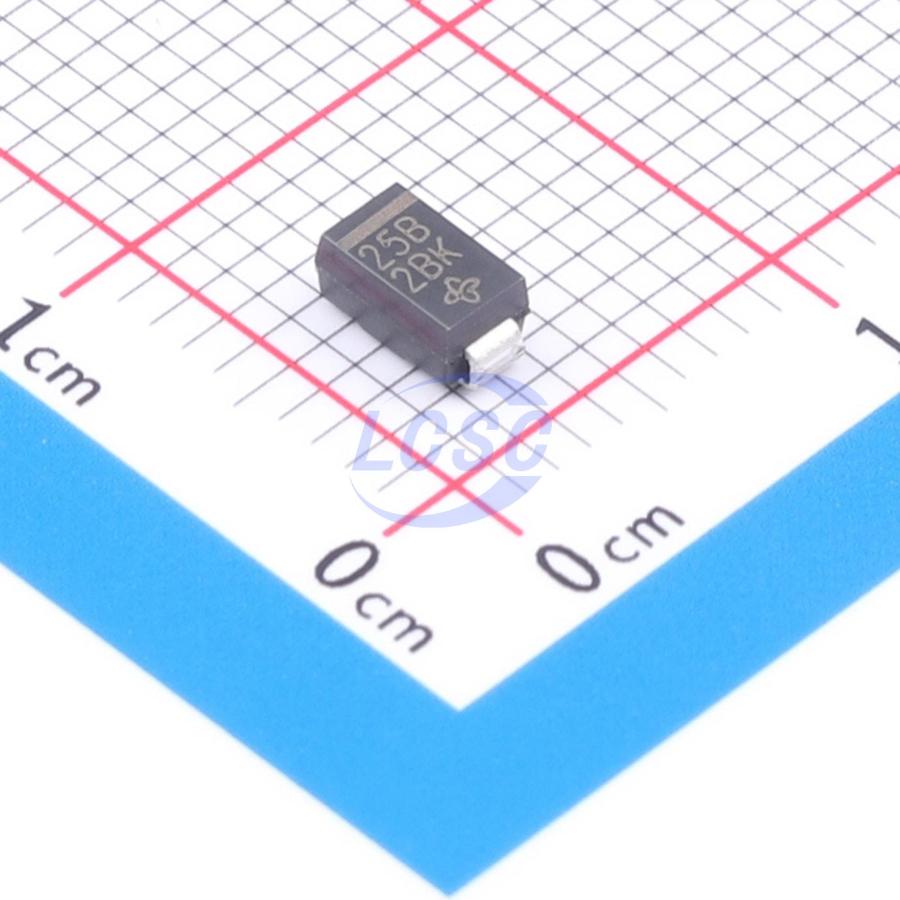

SMAZ5925B-E3/61
1 Independent 9.5V~10.5V 10V DO-214AC(SMA) Single Zener Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAZ5925B-E3/61
- Store part #
- C5919948
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C5919948
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹28.03 | ₹28.03 |
| 10+ | ₹27.39 | ₹273.90 |
| 30+ | ₹26.95 | ₹808.50 |
| 100+ | ₹26.30 | ₹2,630.00 |
1 × ₹28.03
₹28.03
excl. GST
₹33.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAZ5925B-E3/61
₹28.03 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10uA@8V
- Impedance(Zzt)
- 5Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.162 g
Overview
Applications
- For general purpose regulation and protection applications
Key features
- Low profile package
- Ideal for automated placement
- Low Zener impedance
- Low regulation factor
- Meets MSL level 1, per J-STD-020, LF maximum peak of 268℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA4740A#C22385443GOODWORK · SMA | GOODWORK | SMA | 720 | ₹4.50 · 720 in stock | View |
 | 1SMA5925B#C3015312EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 76 | ₹10.76 · 76 in stock | View |
 | 1SMA5925BT3G#C50840onsemi · SMA | onsemi | SMA | 5,085 | ₹29.60 · 5,085 in stock | View |
 | SZ1SMA5925BT3G#C896068onsemi · SMA | onsemi | SMA | 347 | ₹83.55 · 347 in stock | View |
 | 1SMA4740A#C5353095FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 10,040 | ₹4.60 · 10,040 in stock | View |
