onsemiDatasheet (PDF)

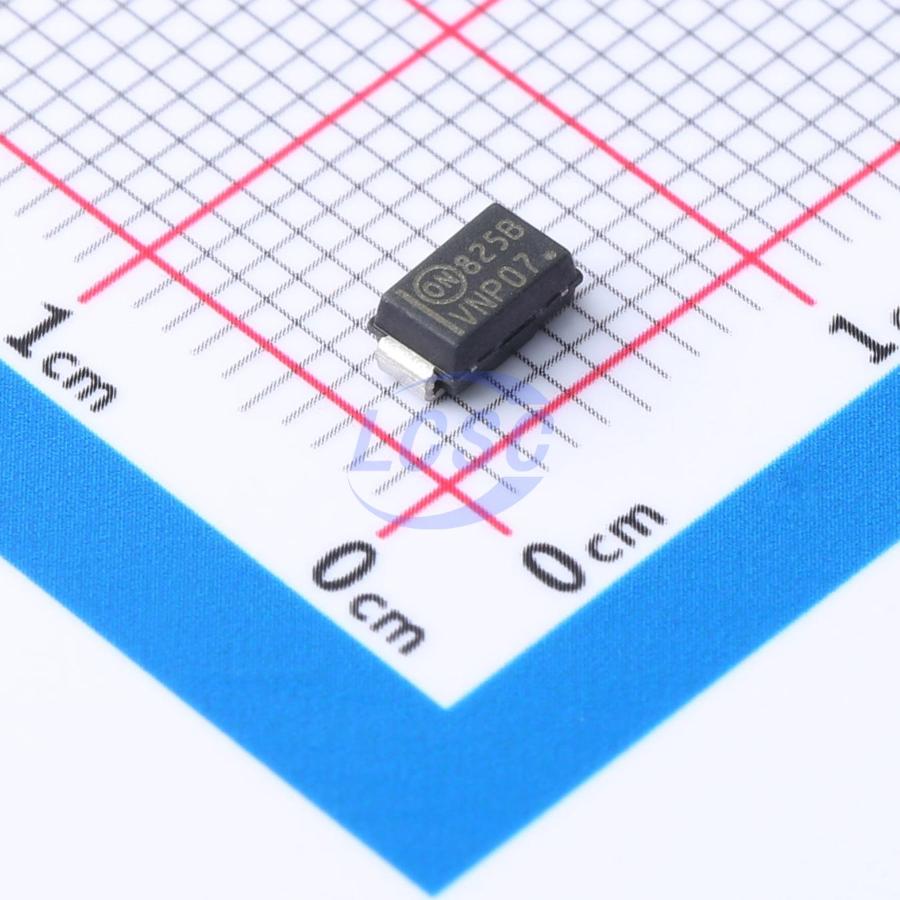

SZ1SMA5925BT3G
Zener Diode 10V 0.5W Surface Mount SMA
SMAROHS3 CompliantActive
DIODE ZENER 10V 0.5W SMA
- Manufacturer
- onsemi
- Manufacturer part #
- SZ1SMA5925BT3G
- Store part #
- C896068
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
347 in stock
#C896068
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.55 | ₹83.55 |
| 10+ | ₹68.06 | ₹680.60 |
| 30+ | ₹60.30 | ₹1,809.00 |
| 100+ | ₹52.55 | ₹5,255.00 |
| 500+ | ₹48.02 | ₹24,010.00 |
| 1,000+ | ₹45.66 | ₹45,660.00 |
1 × ₹83.55
₹83.55
excl. GST
₹98.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SZ1SMA5925BT3G
₹83.55 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 2.5uA@8V
- Impedance(Zzt)
- 4.5Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3 V to 68 V
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA5925B#C3015312EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 76 | ₹10.76 · 76 in stock | View |
 | 1SMA5925BT3G#C50840onsemi · SMA | onsemi | SMA | 5,085 | ₹29.60 · 5,085 in stock | View |
 | SMAZ5925B-E3/61#C5919948VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 54 | ₹28.03 · 54 in stock | View |
 | 1SMA5925BT3G-MS#C18547728MSKSEMI · SMA | MSKSEMI | SMA | 1,930 | ₹8.15 · 1,930 in stock | View |
 | 1SMA5925A#C5158092JSCJ · SMAG | JSCJ | SMAG | 145 | ₹10.58 · 145 in stock | View |
