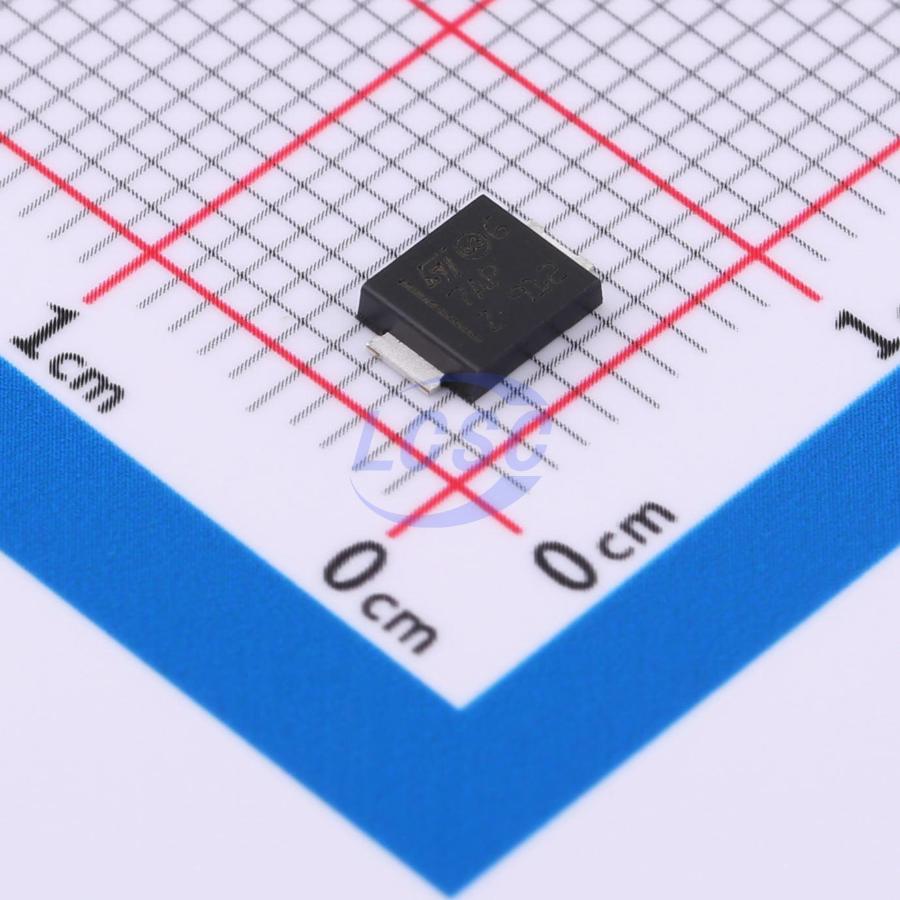

SMB6F8.5A
19.5VC Clamp 205A@8/20us Ipp TVS DIODE SMB-Flat(DO-221-AA)
SMB-Flat(DO-221-AA)ROHS3 CompliantActive
TVS DIODE 8.5VWM 19.5VC SMB-Flat(DO-221-AA)
- Manufacturer
- ST
- Manufacturer part #
- SMB6F8.5A
- Store part #
- C1974061
- Package / case
- SMB-Flat(DO-221-AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C1974061
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.21 | ₹171.05 |
| 50+ | ₹33.74 | ₹1,687.00 |
| 150+ | ₹33.43 | ₹5,014.50 |
| 500+ | ₹33.11 | ₹16,555.00 |
5 × ₹34.21
₹171.05
excl. GST
₹201.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMB6F8.5A
₹171.05 for 5 + GST
Specifications
- Clamping Voltage
- 19.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 205A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 11.1V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The SMB6FxxA series are designed to protect sensitive circuits against surges. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
Key features
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
- Flat and thin package: 1 mm
- Stand-off voltage range from 5 V to 188 V
- Unidirectional type
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
- Operating Tj max: 175 °C
- High power capability at Tj max.: up to 470 W (10/1000 µs)
- Lead finishing: matte tin plating
- UL94, V0
- J-STD-020 MSL level 1
- J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026 solderable
- matte tin plated leads
- JESD-201 class 2 whisker test
- IPC7531 footprint
- JEDEC registered package outline
- IEC 61000-4-4 level 4: 4 kV
- IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: 30 kV (air discharge) 30 kV (contact discharge)
