DIODESDatasheet (PDF)

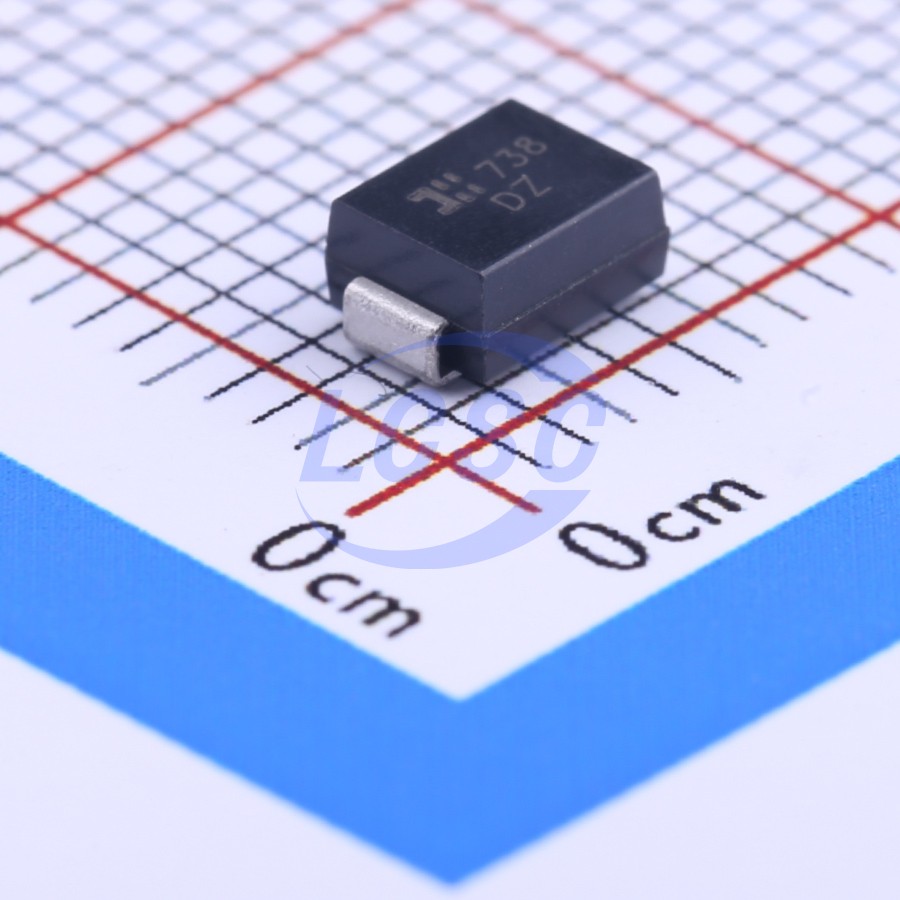

SMBJ100CA-13-F
162VC Clamp 3.7A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 100VWM 162VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ100CA-13-F
- Store part #
- C135029
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C135029
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.90 | ₹124.50 |
| 50+ | ₹24.37 | ₹1,218.50 |
| 150+ | ₹24.01 | ₹3,601.50 |
| 500+ | ₹23.64 | ₹11,820.00 |
5 × ₹24.90
₹124.50
excl. GST
₹146.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ100CA-13-F
₹124.50 for 5 + GST
Specifications
- Clamping Voltage
- 162V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.7A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 128V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 100V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ100CA#C49066962R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 1,520 | ₹7.53 · 1,520 in stock | View |
 | SMBJ100CA#C5353236FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,580 | ₹5.19 · 3,580 in stock | View |
 | SMBJ100CA#C18199566BORN · DO-214AA(SMB) | BORN | DO-214AA(SMB) | 2,350 | ₹8.47 · 2,350 in stock | View |
 | SMBJ100CA#C49242905PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 920 | ₹5.33 · 920 in stock | View |
 | SMBJ100CA#C5128783KUU · SMB | KUU | SMB | 2,940 | ₹5.33 · 2,940 in stock | View |
