DIODESDatasheet (PDF)

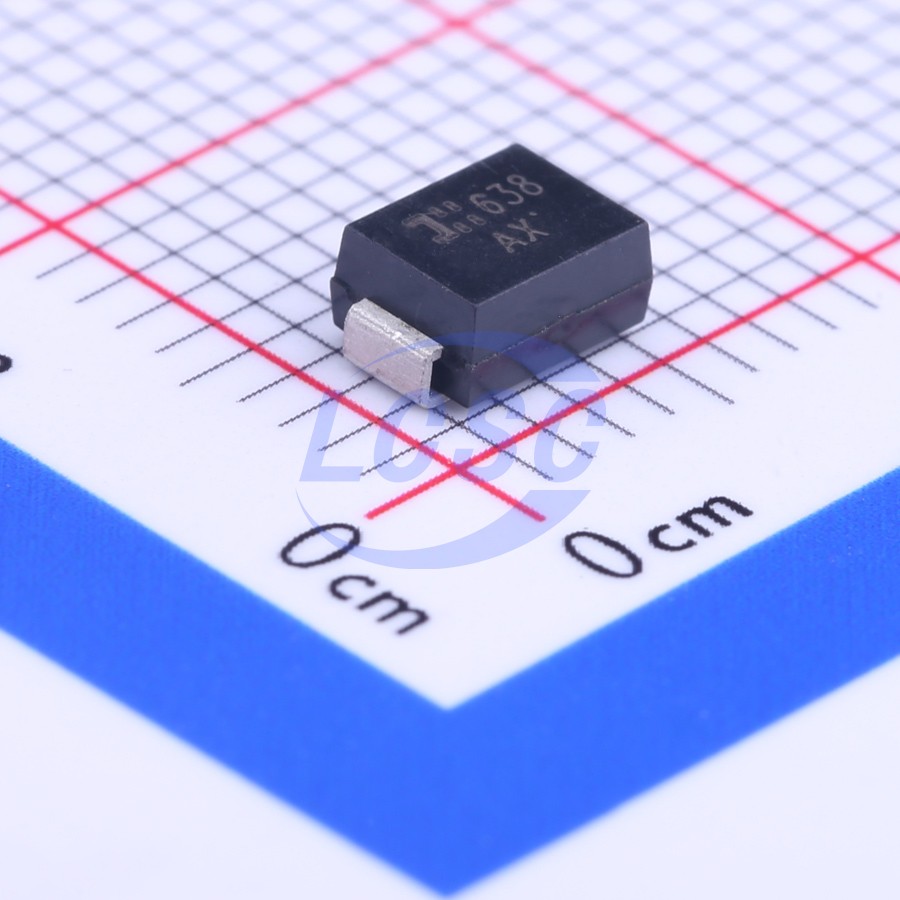

SMBJ10CA-13-F
17VC Clamp 35.3A@8.3ms Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 10VWM 17VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ10CA-13-F
- Store part #
- C135031
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C135031
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.14 | ₹130.70 |
| 50+ | ₹20.80 | ₹1,040.00 |
| 150+ | ₹18.51 | ₹2,776.50 |
| 500+ | ₹15.66 | ₹7,830.00 |
| 3,000+ | ₹14.39 | ₹43,170.00 |
| 6,000+ | ₹13.63 | ₹81,780.00 |
5 × ₹26.14
₹130.70
excl. GST
₹154.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ10CA-13-F
₹130.70 for 5 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 35.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 12.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 10V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ10CA#C364294MDD(Microdiode Semiconductor) · DO-214AA(SMB) | MDD(Microdiode Semiconductor) | DO-214AA(SMB) | 55,290 | ₹7.40 · 55,290 in stock | View |
 | SMBJ10CA#C117598RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 1,745 | ₹12.37 · 1,745 in stock | View |
 | SMBJ10CA-E3/52#C466994VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 15 | ₹14.66 · 15 in stock | View |
 | SMBJ10CA#C556184Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 330 | ₹6.95 · 330 in stock | View |
 | SMBJ10CA#C908843GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 11,410 | ₹5.44 · 11,410 in stock | View |
