DIODESDatasheet (PDF)

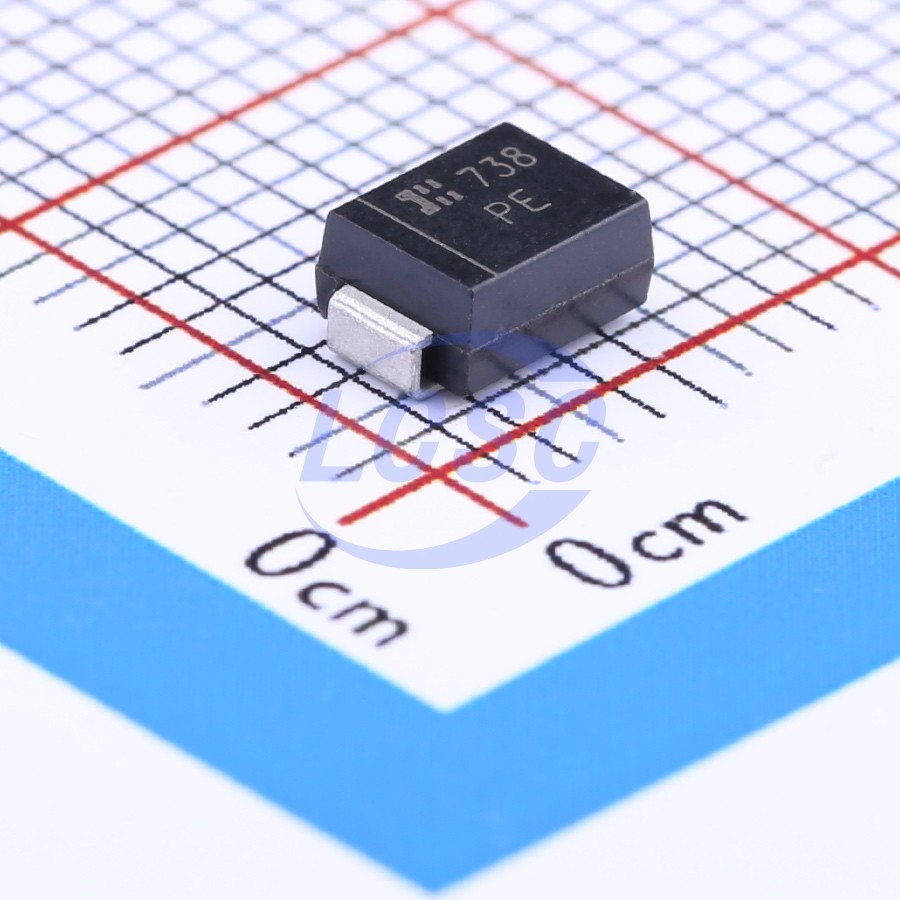

SMBJ110A-13-F
177VC Clamp 3.4A@8.3ms Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 110VWM 177VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ110A-13-F
- Store part #
- C135032
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C135032
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.23 | ₹111.15 |
| 50+ | ₹17.24 | ₹862.00 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹12.44 | ₹6,220.00 |
| 3,000+ | ₹11.25 | ₹33,750.00 |
| 6,000+ | ₹10.54 | ₹63,240.00 |
5 × ₹22.23
₹111.15
excl. GST
₹131.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ110A-13-F
₹111.15 for 5 + GST
Specifications
- Clamping Voltage
- 177V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 140V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 110V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ110A#C5353288FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,480 | ₹5.16 · 2,480 in stock | View |
 | SMBJ110A#C49242908PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 1,000 | ₹6.05 · 1,000 in stock | View |
 | SMBJ110A#C5128784KUU · SMB | KUU | SMB | 120 | ₹5.21 · 120 in stock | View |
 | SMBJ110A#C5161396ZHIDE · DO-214AA(SMB) | ZHIDE | DO-214AA(SMB) | 240 | ₹9.39 · 240 in stock | View |
 | SMBJ110A#C53278484TECH PUBLIC · SMB | TECH PUBLIC | SMB | 5,510 | ₹5.85 · 5,510 in stock | View |
