DIODESDatasheet (PDF)

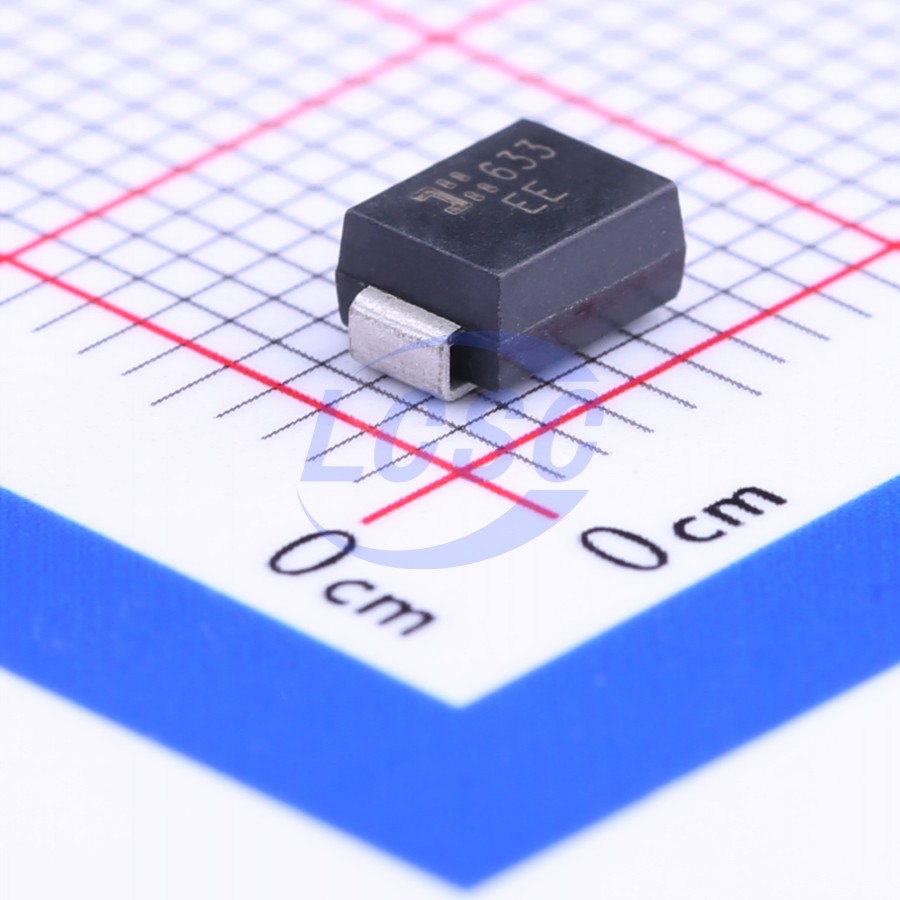

SMBJ110CA-13-F
177VC Clamp 3.4A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 110VWM 177VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ110CA-13-F
- Store part #
- C135033
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C135033
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.41 | ₹97.05 |
| 50+ | ₹15.52 | ₹776.00 |
| 150+ | ₹13.59 | ₹2,038.50 |
| 500+ | ₹12.13 | ₹6,065.00 |
| 3,000+ | ₹10.97 | ₹32,910.00 |
| 6,000+ | ₹10.39 | ₹62,340.00 |
5 × ₹19.41
₹97.05
excl. GST
₹114.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ110CA-13-F
₹97.05 for 5 + GST
Specifications
- Clamping Voltage
- 177V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 140V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 110V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ110CA#C3719937BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 55 | ₹69.64 · 55 in stock | View |
 | SMBJ110CA#C9025RUILON · DO-214AA(SMB) | RUILON | DO-214AA(SMB) | 3,595 | ₹12.93 · 3,595 in stock | View |
 | SMBJ110CA#C1974792Littelfuse · DO-214AA | Littelfuse | DO-214AA | 730 | ₹15.69 · 730 in stock | View |
 | SMBJ110CA-E3/52#C1973744VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 25 | ₹29.70 · 25 in stock | View |
 | SMBJ110CA#C5353237FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 2,630 | ₹5.16 · 2,630 in stock | View |
