DIODESDatasheet (PDF)

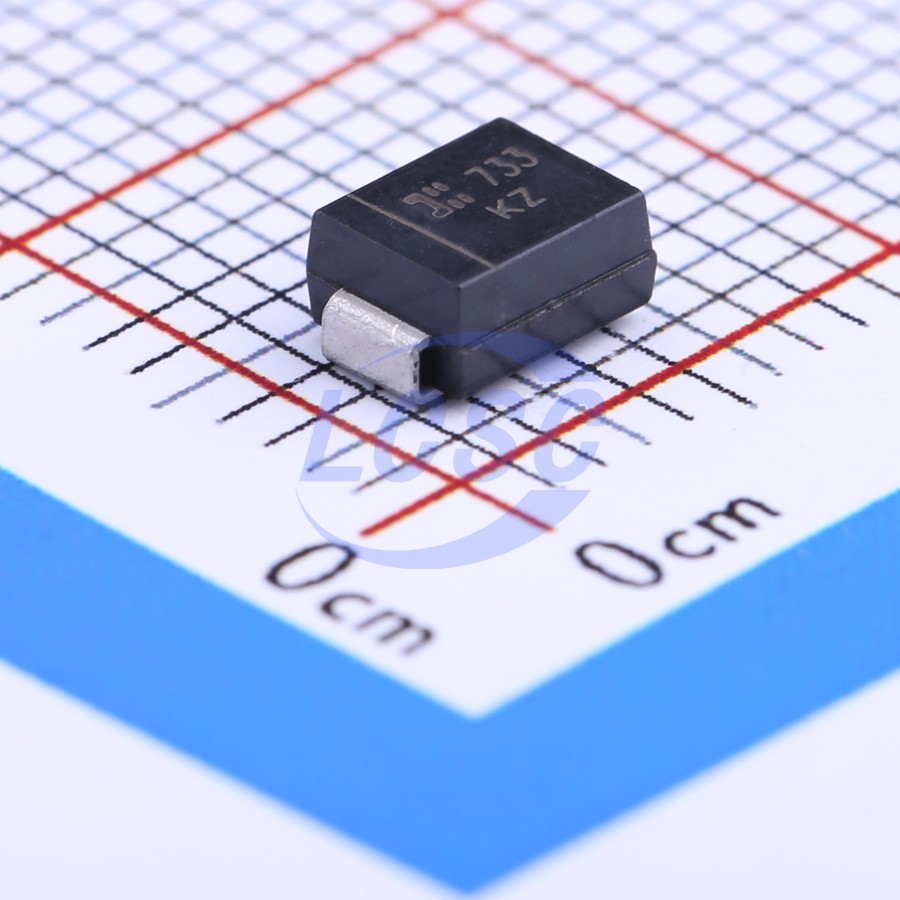

SMBJ11A-13-F
18.2VC Clamp 33A Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 11VWM 18.2VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ11A-13-F
- Store part #
- C135034
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C135034
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.13 | ₹80.65 |
| 50+ | ₹15.78 | ₹789.00 |
| 150+ | ₹15.55 | ₹2,332.50 |
| 500+ | ₹15.31 | ₹7,655.00 |
5 × ₹16.13
₹80.65
excl. GST
₹95.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ11A-13-F
₹80.65 for 5 + GST
Specifications
- Clamping Voltage
- 18.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 33A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ11A#C5353257FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,460 | ₹5.17 · 3,460 in stock | View |
 | SMBJ11A#C440276AnBon · SMB(DO-214AA) | AnBon | SMB(DO-214AA) | 2,960 | ₹6.71 · 2,960 in stock | View |
 | SMBJ11A#C499727SMC · SMB(DO-214AA) | SMC | SMB(DO-214AA) | 3,000 | ₹10.76 · 3,000 in stock | View |
 | SMBJ11A#C908792GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 1,290 | ₹4.71 · 1,290 in stock | View |
 | SMBJ11A#C50325494R+O · SMB | R+O | SMB | 2,600 | ₹6.35 · 2,600 in stock | View |
