DIODESDatasheet (PDF)

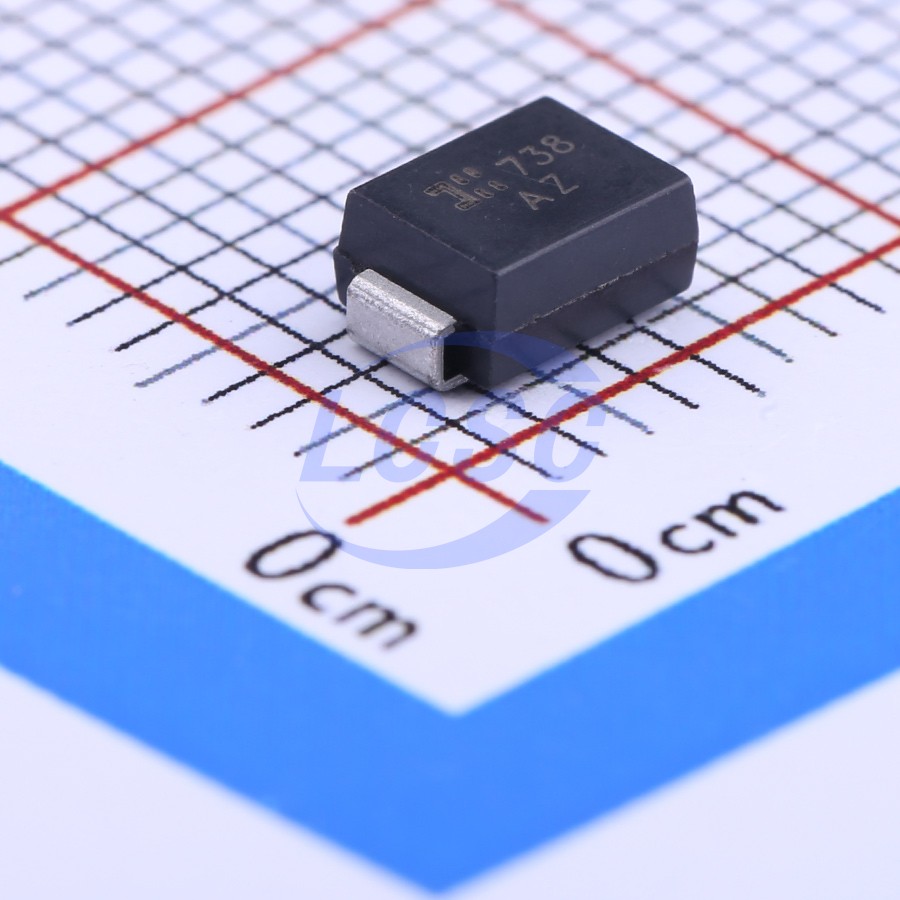

SMBJ11CA-13-F
18.2VC Clamp 33A@8.3ms Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 11VWM 18.2VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ11CA-13-F
- Store part #
- C135035
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C135035
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.54 | ₹72.54 |
| 10+ | ₹57.64 | ₹576.40 |
| 30+ | ₹51.17 | ₹1,535.10 |
| 100+ | ₹43.18 | ₹4,318.00 |
| 500+ | ₹39.73 | ₹19,865.00 |
| 1,000+ | ₹37.57 | ₹37,570.00 |
1 × ₹72.54
₹72.54
excl. GST
₹85.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ11CA-13-F
₹72.54 for 1 + GST
Specifications
- Clamping Voltage
- 18.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 33A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ11CA-E3/52#C2978664VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 20 | ₹27.81 · 20 in stock | View |
 | SMBJ11CA#C5353206FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 4,360 | ₹5.17 · 4,360 in stock | View |
 | SMBJ11CA#C49066944R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 4,940 | ₹6.39 · 4,940 in stock | View |
 | SMBJ11CA#C492923SMC · SMB(DO-214AA) | SMC | SMB(DO-214AA) | 35 | ₹10.91 · 35 in stock | View |
 | SMBJ11CA#C908844GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 400 | ₹5.13 · 400 in stock | View |
