MICROCHIPDatasheet (PDF)

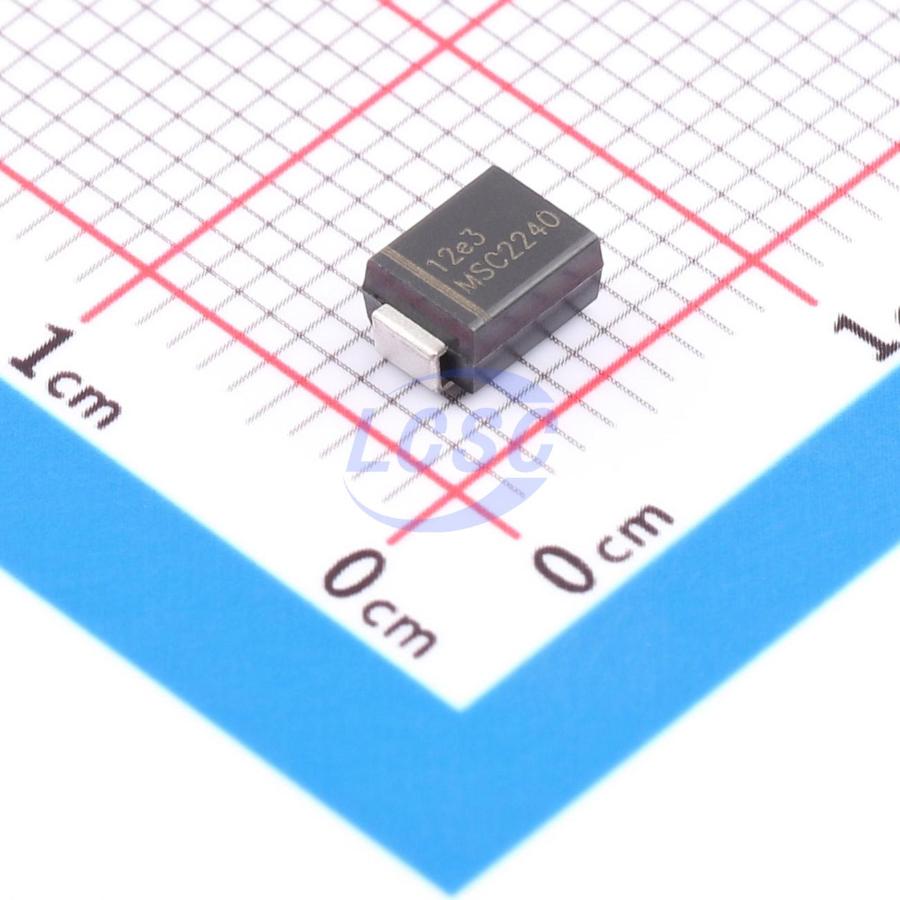

SMBJ12E3/TR13
22VC Clamp 27.3A Ipp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- SMBJ12E3/TR13
- Store part #
- C2446314
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C2446314
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.95 | ₹133.95 |
| 10+ | ₹108.51 | ₹1,085.10 |
| 30+ | ₹95.68 | ₹2,870.40 |
| 100+ | ₹83.07 | ₹8,307.00 |
1 × ₹133.95
₹133.95
excl. GST
₹158.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ12E3/TR13
₹133.95 for 1 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 27.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.68 g
