DIODESDatasheet (PDF)

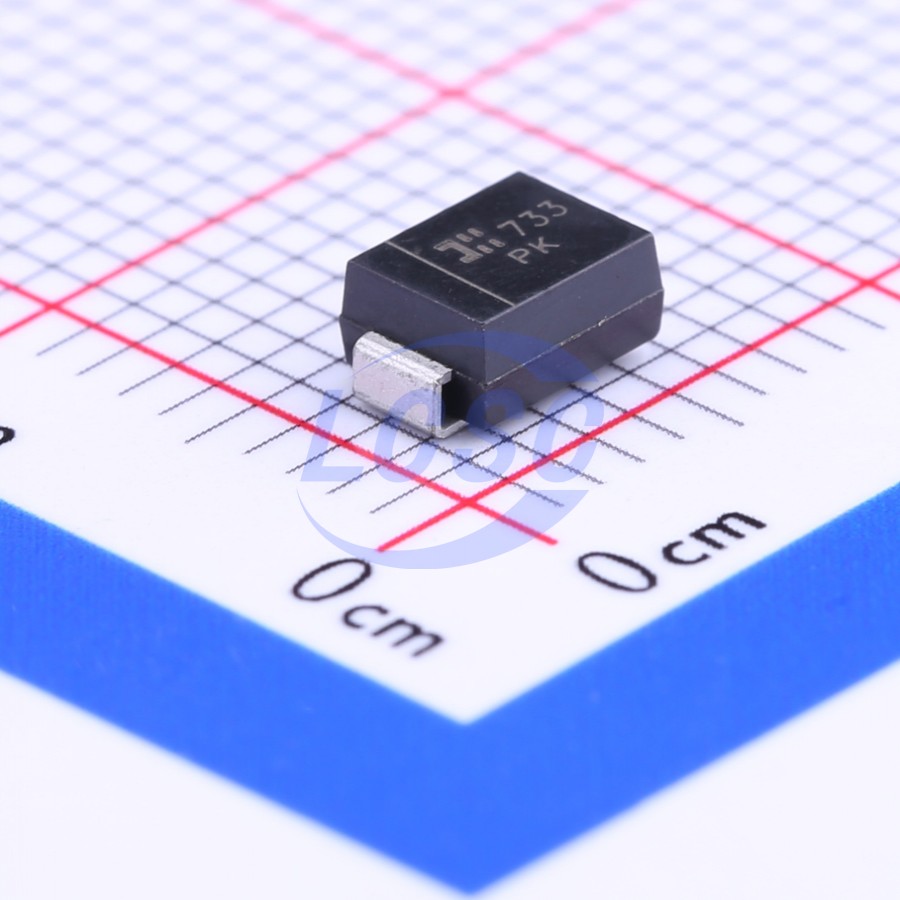

SMBJ130A-13-F
209VC Clamp 2.9A@8.3ms Ipp TVS DIODE SMB
SMBROHS CompliantActive
TVS DIODE 130VWM 209VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ130A-13-F
- Store part #
- C135040
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C135040
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.48 | ₹92.40 |
| 50+ | ₹18.09 | ₹904.50 |
| 150+ | ₹17.83 | ₹2,674.50 |
| 500+ | ₹17.57 | ₹8,785.00 |
5 × ₹18.48
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ130A-13-F
₹92.40 for 5 + GST
Specifications
- Clamping Voltage
- 209V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 165.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 130V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ130A#C5353290FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 3,630 | ₹5.19 · 3,630 in stock | View |
 | SMBJ130A#C49066964R+O · SMB(DO-214AA) | R+O | SMB(DO-214AA) | 530 | ₹6.69 · 530 in stock | View |
 | SMBJ130A-E3/5B#C1974591VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 20 | ₹18.77 · 20 in stock | View |
| SMBJ130A#C20883344OTW · SMB(DO-214AA) | OTW | SMB(DO-214AA) | 300 | ₹5.20 · 300 in stock | View | |
 | SMBJ130A#C49242915PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 980 | ₹4.59 · 980 in stock | View |
