DIODESDatasheet (PDF)

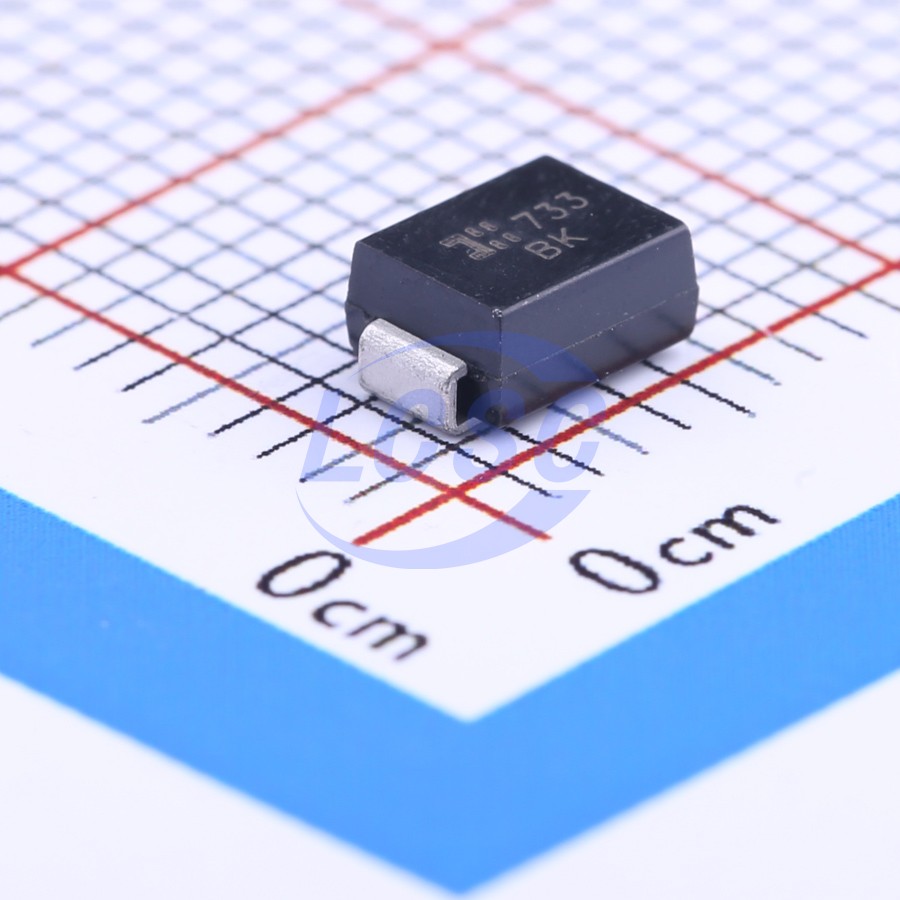

SMBJ14CA-13-F
23.2VC Clamp 25.8A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
TVS DIODE 14VWM 23.2VC SMB
- Manufacturer
- DIODES
- Manufacturer part #
- SMBJ14CA-13-F
- Store part #
- C135044
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C135044
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.28 | ₹176.40 |
| 50+ | ₹28.07 | ₹1,403.50 |
| 150+ | ₹24.99 | ₹3,748.50 |
| 500+ | ₹21.14 | ₹10,570.00 |
| 3,000+ | ₹19.42 | ₹58,260.00 |
| 6,000+ | ₹18.39 | ₹1,10,340.00 |
5 × ₹35.28
₹176.40
excl. GST
₹208.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ14CA-13-F
₹176.40 for 5 + GST
Specifications
- Clamping Voltage
- 23.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25.8A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 17.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- 600W Peak Pulse Power Dissipation
- 5.0V to 200V Standoff Voltages
- Glass Passivated Die Construction
- Uni- and Bi- Directional Versions Available
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMBJ14CA-TP#C1974672MCC · SMB(DO-214AA) | MCC | SMB(DO-214AA) | 180 | ₹18.48 · 180 in stock | View |
 | SMBJ14CA#C5353209FOSAN · SMB(DO-214AA) | FOSAN | SMB(DO-214AA) | 240 | ₹5.16 · 240 in stock | View |
 | SMBJ14CA#C41376097R+O · DO-214AA(SMB) | R+O | DO-214AA(SMB) | 29,900 | ₹7.28 · 29,900 in stock | View |
 | SMBJ14CA#C908847GOODWORK · DO-214AA(SMB) | GOODWORK | DO-214AA(SMB) | 8,800 | ₹5.20 · 8,800 in stock | View |
 | SMBJ14CA#C152105BORN · DO-214AA(SMB) | BORN | DO-214AA(SMB) | 8,640 | ₹8.69 · 8,640 in stock | View |
