MDD(Microdiode Semiconductor)Datasheet (PDF)

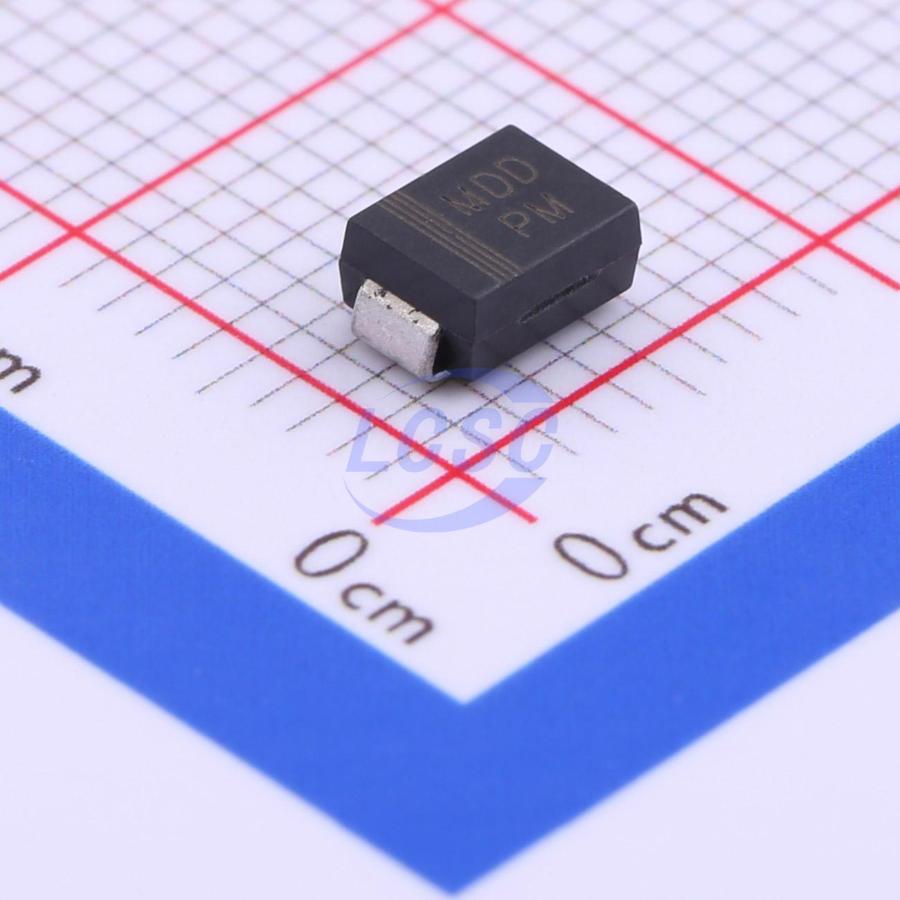

SMBJ150A
243VC Clamp 2.5A@10/1000us Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
TVS DIODE 150VWM 243VC DO-214AA(SMB)
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- SMBJ150A
- Store part #
- C123818
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,000 in stock
#C123818
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.77 | ₹38.85 |
| 50+ | ₹6.46 | ₹323.00 |
| 150+ | ₹5.81 | ₹871.50 |
| 500+ | ₹5.32 | ₹2,660.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
5 × ₹7.77
₹38.85
excl. GST
₹45.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ150A
₹38.85 for 5 + GST
Specifications
- Clamping Voltage
- 243V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 2.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 185V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 150V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.224 g
Overview
Applications
- Input/Output Interfaces
- AC/DC Power
- Low-frequency signal transmission lines (RS232, RS485, etc.)
Key features
- Surface mount application optimized for board space
- Low-profile package
- Built-in stress relief structure
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 600W peak pulse power capability under 10/1000μs waveform
- Repetition rate (duty cycle): 0.01%
- Fast response time
- Typical reverse current less than 1μA above 10V
- High-temperature soldering: terminals withstand 260℃ for 10 seconds
- Plastic package meets UL 94V-0 flammability rating
