SEMIWAREDatasheet (PDF)

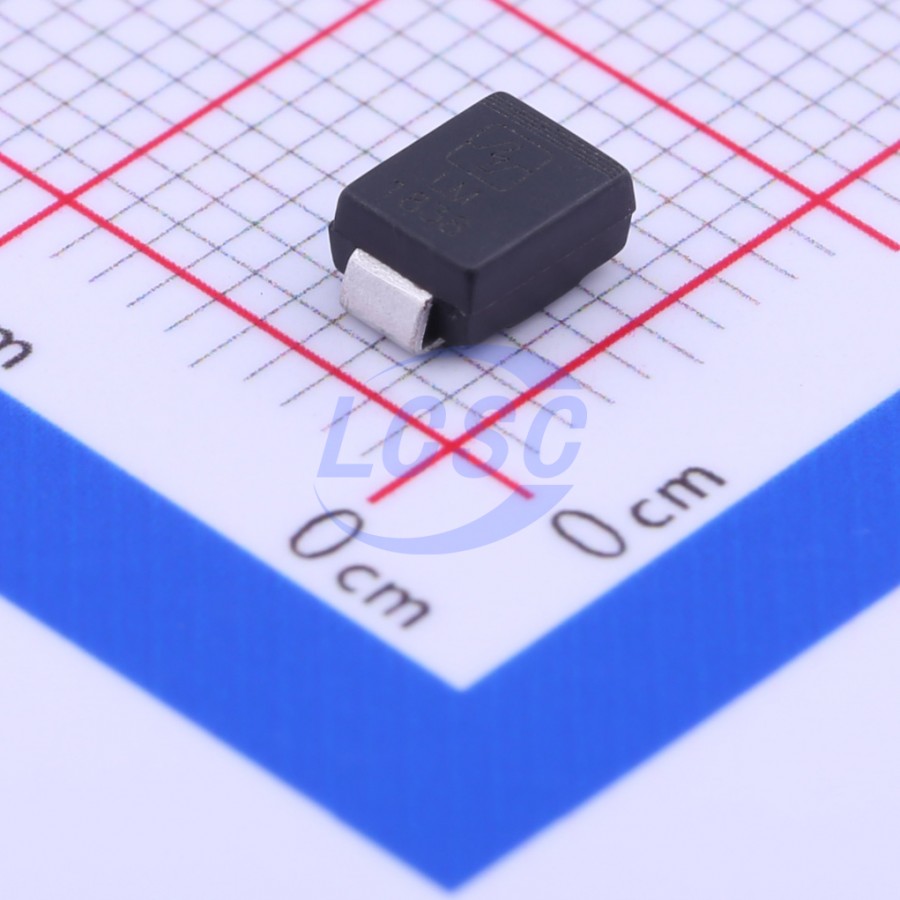

SMBJ15A
24.4VC Clamp 24.6A@10/1000us Ipp TVS DIODE DO-214AA(SMB)
DO-214AA(SMB)ROHS CompliantSold out at source
TVS DIODE 15VWM 24.4VC DO-214AA(SMB)
- Manufacturer
- SEMIWARE
- Manufacturer part #
- SMBJ15A
- Store part #
- C294869
- Package / case
- DO-214AA(SMB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C294869
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.99 | ₹79.90 |
| 100+ | ₹6.38 | ₹638.00 |
| 300+ | ₹5.56 | ₹1,668.00 |
| 3,000+ | ₹4.96 | ₹14,880.00 |
| 6,000+ | ₹4.47 | ₹26,820.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹7.99
₹79.90
excl. GST
₹94.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMBJ15A
₹79.90 for 10 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 24.6A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 16.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.199 g
Overview
The SMBJ series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.
Applications
- Protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications
Key features
- Low profile package
- Ideal for automated placement
- Available in uni - directional and Bi - directional
- 600W peak pulse power capability with a 10/1000 μs waveform
- For surface mounted applications to optimize board space
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
